Fire Resistant Fire Alarm Cables
225V SR Insulated & LSZH Sheathed Fire Alarm Cables BMK*
JE-SH(St)H…Bd FE180 E30 BMK (CU/Mica+SR/OSCR/LSZH 225V Class 1 )
APPLICATION
The 25V SR Insulated & LSZH Sheathed Fire Resistant Fire Alarm cables are used for the internal wiring of building when the circuit integrity during fire is paramount. The cables are intended for use in fire fighting plants with mica tapes, with and without Aluminum foil and LSZH outer sheath.The fire alarm cables with 30 to 90 minutes circuit integrity should be used for control voltages and data transfer in alarm and fire alarm systems, where a system circuit integrity E30/E60/E90 depending on lay system in accordance with DIN 4102-12 is required. The circuit integrity is guaranteed with a test voltage of 110V.
STANDARDS
Basic design to VDE 0815
FIRE PERFORMANCE
Circuit Integrity | IEC 60331-23; BS 6387 CWZ; DIN VDE 0472-814(FE180); CEI 20-36/2-1; SS229-1; NBN C 30-004 (cat. F3); NF C32-070-2.3(CR1) |
---|---|
System circuit integrity | DIN 4102-12, E30 depending on lay system |
Flame Retardance (Single Vertical Wire Test) | EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070- 2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test) | EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
Halogen Free | IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1* |
No Corrosive Gas Emission | IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2* |
Minimum Smoke Emission | IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2* |
No Toxic gases | NES 02-713; NF C 20-454 |
Note: Asterisk * denotes superseded standard.

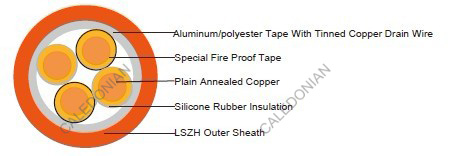

CABLE CONSTRUCTION
Conductors: Plain annealed copper wire, sized 0.8mm solid according to IEC(EN) 60228 class 1.
Flame barrier: Special fire proof tape.
Insulation: Fire resistant silicone rubber type HJ1 as per DIN VDE 0207-23.
Cabling Elements: Insulated cores are twisted to form pairs with varying lay length to minimize
crosstalk. Two-pair cable had four cores laid in quad formation.
Cabling: Pairs are cabled together. In cables with 8 pairs or more, 4 pairs are assembled to form
a bunch, the bunches are then cabled together in concentric layers with suitable non-hygroscopic
fillers.
Overall Screen: Aluminum/polyester tape with tinned copper drain wire.
Outer Sheath: Thermoplastic LSZH compound HM2 as per DIN VDE 0207-24
COLOUR CODE
Insulation Colour:
Each bunch blue - red / grey - yellow / green - brown / white - black
Bunch identication plastic numbered tape
Sheath Colour:
Colour red with printed " BMK - BRANDMELDEKABEL" denoting fire alarms.
TYPE CODE
JE- Fire alarm cable H Halogen free & zero halogen
Bd Unit stranding. (St) Static shield of Aluminum tape
FE180 Insulation integrity (950°C 180 minutes) E30 30 minutes system circuit integrity
STA Corrugated steel tape SWA Steel wire armour
SWB Steel wire braid
Physical AND THERMAL PROPERTIES
Temperature range during operation (fixed state): -30°C – +90°C
Temperature range during installation (mobile state): -20°C – +50°C
Minimum bending radius: 7.5 x Overall Diameter
Electrical PROPERTIES
Conductor Diameter | mm | 0.8 |
---|---|---|
Conductor Size | mm2 | 0.5 |
Maximum Conductor Resistance @20°C | Ω/km | 34.6 |
Maximum Loop Resistance @20°C | Ω/km | 73.2 |
Minimum Insulation Resistance @500V DC @20°C | MΩ.km | 100 |
Maximum Average Attenuation @0.8KHz | dB/km | 1.2 |
Nominal Mutual Capacitance @0.8KHz | nF/km | 120 |
Maximum Capacitance Unbalance K1 @0.8KHz pair-to-pair | pF/100m | 200 |
Working Voltage | V | 225 |
Nominal Insulation Thickness | mm | 0.4 |
Nominal Insulated Conductor Diameter | mm | 1.6 |
CONSTRUCTION PARAMETERS
Cable Code | Nominal Insulation Thickness | Nominal Sheath Thickness | Nominal Overall Diameter | Approx. Weight |
---|---|---|---|---|
mm2 | mm | mm | mm | kg/km |
0.8mm Conductor, Solid 0,5 mm2 Section | ||||
JE-SH(St)H...1X2x0.8 FE180/E30 BMK | 0.4 | 1.0 | 6.1 | 52 |
JE-SH(St)H...2X2x0. 8(quad) FE180/E30 BMK | 0.4 | 1.0 | 7.5 | 77 |
JE-SH(St)H...4X2x0. 8 FE180/E30 BMK | 0.4 | 1.0 | 10.5 | 133 |
0.8mm Conductor, Solid 0,5 mm2 Section | ||||
JE-SH(St)H...8X2x0.8 Bd FE180/E30 BMK | 0.4 | 1.0 | 17. 4 | 296 |
JE-SH(St)H...12X2x0.8 Bd FE180/E30 BMK | 0.4 | 1.2 | 18. 9 | 368 |
JE-SH(St)H...16X2x0.8 Bd FE180/E30 BMK | 0.4 | 1.2 | 20. 7 | 442 |
JE-SH(St)H...20X2x0.8 Bd FE180/E30 BMK | 0.4 | 1.2 | 22. 7 | 508 |
JE-SH(St)H...32X2x0.8 Bd FE180/E30 BMK | 0.4 | 1.4 | 24. 5 | 772 |
JE-SH(St)H...40X2x0.8 Bd FE180/E30 BMK | 0.4 | 1.4 | 26. 5 | 946 |
JE-SH(St)H...52X2x0.8 Bd FE180/E30 BMK | 0.4 | 1.6 | 28. 0 | 1016 |
