EN 50288-7 STANDARDS PE Insulated, LSZH Sheathed, Overall Screened & Armoured Instrumentation Cables (Multitriple)
RE-2Y(St)HSWAH 70°C / 300 V

APPLICATION:

These cables are used for transmission of analoge and digital signals in instrument and control systems at chemistry and petrochemistry industry plants, power plants, natural gas and petroluem plants, etc. These cables are used in the environments which have no corrosive gases are emitted in the event of fire. In case of fire, these cables inhibit the propagation of the flames whereby the development of smoke is extremely low. Instrumentation cables are not allowed for direct connection to a low impedance sources, e.g. public mains electricity supply. With blue sheath it is suitable for intrinsically safe systems. These cables are not recommended for direct burial. They are for indoorand outdoor installation, in dry and wet l°Cations; on racks, trays, in conduits.

STANDARDS

Basic design to EN50288-7

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test)

EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*

Note: Asterisk * denotes superseded standard, **Test temperature +60°C, duration 4h. Retention: min 60% of tensite strength/min.60% of elongation.

VOLTAGE RATING

300V

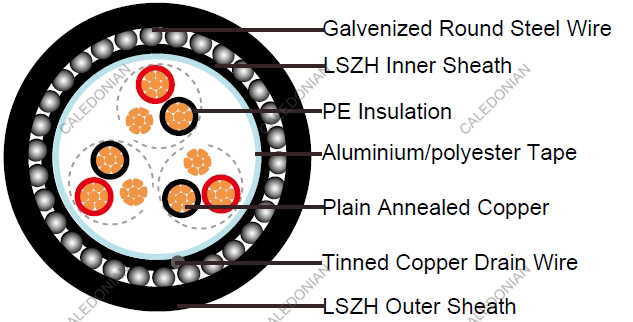

CABLE CONSTRUCTION

• Conductor: Annealed copper solid or plain copper stranded to IEC 60228 Class 2.
• Insulation: PE compound, EN 50290. 2-23.
• Pair:Two conductors twisted to form a pair
• Lay-up: Pairs laid up in layers of optimum pitch
• Separator: Polyester tape
• Overall Screen: Aluminium/polyester tape with tinned copper drain wire, 0.5mm2
• ?Inner sheath: HFFR compound, EN 50290-2-27
• Armour: Galvenized round steel wire, EN 10257-1
• Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound typeSW2-SW4 as per BS 7655-2.6 can be offered.). UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option.

COLOUR CODE

Insulation: Black / White / Red, continuously numbered on white core(1, 2..)for multitriples.

Outer Sheath: Black or blue for intrinsically safe systems

PHYSICAL and THERMAL PROPERTIES

• Temperature Range During Operation (Fixed State): -30°C – +70°C
• Temperature Range During Installation (Mobile State): -5°C – +50°C
• Minimum Bending Radius: 10 X Overall Diameter

ELETRICAL PROPERTIES

Conductor Area Size		mm2	0.5	0.75	1.0	1.3	1.5
Insulation thickness (nominal)		mm	0.35	0.38	0.4	0.45	0.45
Conductor resistance (20°C)		Ω/km	36.7	25	18.5	14.2	12.3
Insulation resistance (20°C)		MΩ.km(Min.)	1000
Mutual Capacitance (1 kHz)		pF/m(Max.)
?		≤ 4 pairs	90	90	90	102	102
?		all other pairs	75	75	75	85	85
Capacitance unbalance(1 kHz)		pF/500 m (Max.)	500
L / R (ratio) (max.)		μH/Ω	25	25	25	40	40
Inductance		mH/km(Max.)	1
Operating voltage Urms		V	300
Test Voltage	Core to Core	V	1500
	Core to Screen	V	1500

CONSTRUCTION PARAMETERS

Caledonian Cable Code	RE-2Y(St)HSWAH
	No. of Triples x3xCross Section	Nominal Insulation Thickness	Nominal Inner Sheath Thickness	Nominal Overall Diameter Over InnerSheath	Nominal Armour Wire Diameter	Nominal Outer Sheath Thickness
	No.x3xmm2	mm	mm	mm	mm	mm
0.5mm2, Multitriple
RE-2Y(St)HSWAH 2T0.5	2x3x0.5	0.35	0.9	8.4	0.9	1.4
RE-2Y(St)HSWAH 4T0.5	4x3x0.5	0.35	1.0	9.8	0.9	1.4
RE-2Y(St)HSWAH 5T0.5	5x3x0.5	0.35	1.0	10.8	0.9	1.4
RE-2Y(St)HSWAH 6T0.5	6x3x0.5	0.35	1.0	12.1	0.9	1.4
RE-2Y(St)HSWAH 8T0.5	8x3x0.5	0.35	1.1	13.1	0.9	1.5
RE-2Y(St)HSWAH 10T0.5	10x3x0.5	0.35	1.1	14.7	0.9	1.5
RE-2Y(St)HSWAH 12T0.5	12x3x0.5	0.35	1.1	15.2	0.9	1.5
RE-2Y(St)HSWAH 16T0.5	16x3x0.5	0.35	1.2	17.4	0.9	1.6
RE-2Y(St)HSWAH 20T0.5	20x3x0.5	0.35	1.2	19.1	1.25	1.6
RE-2Y(St)HSWAH 24T0.5	24x3x0.5	0.35	1.3	20.9	1.25	1.7
0.75mm2, Multitriple
RE-2Y(St)HSWAH 2T0.75	2x3x0.75	0.38	1.0	10.6	0.9	1.4
RE-2Y(St)HSWAH 4T0.75	4x3x0.75	0.38	1.1	12.4	0.9	1.4
RE-2Y(St)HSWAH 5T0.75	5x3x0.75	0.38	1.1	13.7	0.9	1.4
RE-2Y(St)HSWAH 6T0.75	6x3x0.75	0.38	1.1	15.4	0.9	1.5
RE-2Y(St)HSWAH 8T0.75	8x3x0.75	0.38	1.2	16.7	0.9	1.5
RE-2Y(St)HSWAH 10T0.75	10x3x0.75	0.38	1.3	19.0	0.9	1.5
RE-2Y(St)HSWAH 12T0.75	12x3x0.75	0.38	1.3	19.7	0.9	1.7
RE-2Y(St)HSWAH 16T0.75	16x3x0.75	0.38	1.4	22.5	1.25	1.6
RE-2Y(St)HSWAH 20T0.75	20x3x0.75	0.38	1.5	24.9	1.25	1.7
RE-2Y(St)HSWAH 24T0.75	24x3x0.75	0.38	1.6	27.2	1.25	1.7
1.0mm2, Multitriple
RE-2Y(St)HSWAH 2T1.0	2x3x1	0.4	1.0	11.5	0.9	1.4
RE-2Y(St)HSWAH 4T1.0	4x3x1	0.4	1.1	13.4	0.9	1.4
RE-2Y(St)HSWAH 5T1.0	5x3x1	0.4	1.1	14.8	0.9	1.5
RE-2Y(St)HSWAH 6T1.0	6x3x1	0.4	1.2	16.9	0.9	1.5
RE-2Y(St)HSWAH 8T1.0	8x3x1	0.4	1.2	18.1	0.9	1.5
RE-2Y(St)HSWAH 10T1.0	10x3x1	0.4	1.3	20.7	0.9	1.6
RE-2Y(St)HSWAH 12T1.0	12x3x1	0.4	1.3	21.4	1.25	1.6
RE-2Y(St)HSWAH 16T1.0	16x3x1	0.4	1.4	24.4	1.25	1.7
RE-2Y(St)HSWAH 20T1.0	20x3x1	0.4	1.5	27.1	1.25	1.7
RE-2Y(St)HSWAH 24T1.0	24x3x1	0.4	1.6	29.6	1.25	1.8
1.3mm2, Multitriple
RE-2Y(St)HSWAH 2T1.3	2x3x1,3	0.45	1.1	12.8	0.9	1.4
RE-2Y(St)HSWAH 4T1.3	4x3x1,3	0.45	1.1	14.7	0.9	1.5
RE-2Y(St)HSWAH 5T1.3	5x3x1,3	0.45	1.2	16.5	0.9	1.5
RE-2Y(St)HSWAH 6T1.3	6x3x1,3	0.45	1.3	18.8	0.9	1.5
RE-2Y(St)HSWAH 8T1.3	8x3x1,3	0.45	1.3	20.1	0.9	1.6
RE-2Y(St)HSWAH 10T1.3	10x3x1,3	0.45	1.4	23.0	1.25	1.7
RE-2Y(St)HSWAH 12T1.3	12x3x1,3	0.45	1.5	24.0	1.25	1.7
RE-2Y(St)HSWAH 16T1.3	16x3x1,3	0.45	1.6	27.4	1.25	1.8
RE-2Y(St)HSWAH 20T1.3	20x3x1,3	0.45	1.7	30.4	1.25	1.8
RE-2Y(St)HSWAH 24T1.3	24x3x1,3	0.45	1.8	33.1	1.60	1.9
1.5mm2, Multitriple
RE-2Y(St)HSWAH 2T1.5	2x3x1,5	0.45	1.1	13.2	0.9	1.4
RE-2Y(St)HSWAH 4T1.5	4x3x1,5	0.45	1.2	15.4	0.9	1.5
RE-2Y(St)HSWAH 5T1.5	5x3x1,5	0.45	1.2	17.1	0.9	1.5
RE-2Y(St)HSWAH 6T1.5	6x3x1,5	0.45	1.3	19.5	0.9	1.6
RE-2Y(St)HSWAH 8T1.5	8x3x1,5	0.45	1.4	21.1	1.25	1.6
RE-2Y(St)HSWAH 10T1.5	10x3x1,5	0.45	1.5	24.1	1.25	1.7
RE-2Y(St)HSWAH 12T1.5	12x3x1,5	0.45	1.5	24.9	1.25	1.7
RE-2Y(St)HSWAH 16T1.5	16x3x1,5	0.45	1.6	28.4	1.25	1.8
RE-2Y(St)HSWAH 20T1.5	20x3x1,5	0.45	1.7	31.6	1.25	1.9
RE-2Y(St)HSWAH 24T1.5	24x3x1,5	0.45	1.8	34.4	1.60	2.0
