EN 50288-7 STANDARDS PE Insulated, LSZH Sheathed, Overall Screened & Armoured Instrumentation Cables (Multicore)
RE-2Y(St)HSWAH 90°C / 500V

APPLICATION

EN 50288-7 PE armour Multicore cables are generally use for indoor installation and suitable for wet and damp areas. The galvanized steel wire armour provides excellent protection. Generally, the cables are used within industrial process manufacturing plants for communication, data and voice transmission signals and services. Also used for the interconnection of electrical equipment and instruments, the LSZH sheath can reduce toxic smoke and fume emission.

STANDARDS

Basic design to EN 50288-7

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test)

EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*

Note: Asterisk * denotes superseded standard, **Test temperature +60°C, duration 4h. Retention: min 60% of tensite strength/min.60% of elongation.

VOLTAGE RATING

500V

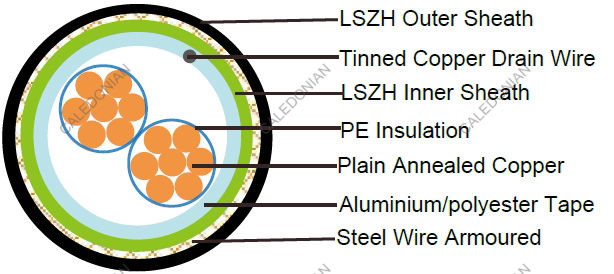

CABLE CONSTRUCTION

• Conductor: Annealed copper solid or plain copper stranded to IEC 60228 Class 2.
• Insulation: PE compound, EN 50290. 2-23.
• Overall Screen: Aluminium/polyester tape with 0.5mm2?screen (7/0.3mm) tinned copper drain wire.
  Inner Sheath: LSZH compound
  Armouring: Galvanised steel wire
• Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound typeSW2-SW4 as per BS 7655-2.6 can be offered.). UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option.

COLOUR CODE

Insulation: Black numbered
Outer Sheath: Black, blue for intrinsically safe systems

PHYSICAL and THERMAL PROPERTIES

• Temperature Range During Operation (Fixed State): -30°C – +90°C
• Temperature Range During Installation (Mobile State): -5°C – +50C
• Minimum Bending Radius: 10 X Overall Diameter

ELETRICAL PROPERTIES

Conductor Area Size		mm2	0.5	0.75	1.0	1.3	1.5	2.5
Insulation thickness (nominal)		mm	0.55	0.55	0.55	0.6	0.6	0.7
Conductor resistance (20°C)		Ω/km	36.0	24.5	18.1	13.9	12.1	7.4
Insulation resistance (20°C)		MΩ.km(Min.)	1000	1000	1000	1000	1000	1000
Mutual Capacitance (1 kHz)		pF/m(Max.)	115	115	115	115	115	2000
Inductance		mH/km(Max.)	1	1	1	1	1	1
L / R (ratio) (max.)		μH/Ω	25	25	25	40	40	10
Operating voltage		V	500	500	500	500	500	500
Test Voltage Urms	Core to Core	V	2000	2000	2000	2000	2000	2000
	Core to Screen	V	2000	2000	2000	2000	2000	2000

CONSTRUCTION PARAMETERS

Caledonian Cable Code	RE-2Y(St)HSWAH
	No. of Cores x1xCross Section	Nominal Insulation Thick- ness	Nominal Inner Sheath Thick- ness	Nominal Overall Diameter Over Inner Sheath	Nominal Armour Wire Diameter	Nominal Outer Sheath Thick- ness
	No.x1xmm2	mm	mm	mm	mm	mm
0.5mm2, Multicore
RE-2Y(St)HSWAH 2C0.5	2x1x0.5	0.55	0.9	6.2	0.9	1.3
RE-2Y(St)HSWAH 3C0.5	3x1x0.5	0.55	0.9	6.5	0.9	1.3
RE-2Y(St)HSWAH 4C0.5	4x1x0.5	0.55	0.9	7.0	0.9	1.3
RE-2Y(St)HSWAH 5C0.5	5x1x0.5	0.55	0.9	7.6	0.9	1.3
RE-2Y(St)HSWAH 8C0.5	8x1x0.5	0.55	1.0	9.1	0.9	1.4
RE-2Y(St)HSWAH 10C0.5	10x1x0.5	0.55	1.0	10.4	0.9	1.4
RE-2Y(St)HSWAH 12C0.5	12x1x0.5	0.55	1.0	10.7	0.9	1.4
RE-2Y(St)HSWAH 14C0.5	14x1x0.5	0.55	1.0	11.3	0.9	1.4
RE-2Y(St)HSWAH 16C0.5	16x1x0.5	0.55	1.1	11.8	0.9	1.4
RE-2Y(St)HSWAH 20C0.5	20x1x0.5	0.55	1.1	13.3	0.9	1.5
RE-2Y(St)HSWAH 24C0.5	24x1x0.5	0.55	1.1	14.7	0.9	1.5
RE-2Y(St)HSWAH 27C0.5	27x1x0.5	0.55	1.2	15.0	0.9	1.5
RE-2Y(St)HSWAH 30C0.5	30x1x0.5	0.55	1.2	15.7	0.9	1.5
RE-2Y(St)HSWAH 37C0.5	37x1x0.5	0.55	1.2	16.9	0.9	1.6
RE-2Y(St)HSWAH 40C0.5	40x1x0.5	0.55	1.2	17.6	1.25	1.6
0.75mm2, Multicore
RE-2Y(St)HSWAH 2C0.75	2x1x0.75	0.55	0.9	6.5	0.9	1.3
RE-2Y(St)HSWAH 3C0.75	3x1x0.75	0.55	0.9	6.9	0.9	1.3
RE-2Y(St)HSWAH 4C0.75	4x1x0.75	0.55	0.9	7.4	0.9	1.3
RE-2Y(St)HSWAH 5C0.75	5x1x0.75	0.55	0.9	8.1	0.9	1.4
RE-2Y(St)HSWAH 8C0.75	8x1x0.75	0.55	1.0	9.7	0.9	1.4
RE-2Y(St)HSWAH 10C0.75	10x1x0.75	0.55	1.0	11.1	0.9	1.4
RE-2Y(St)HSWAH 12C0.75	12x1x0.75	0.55	1.0	11.5	0.9	1.4
RE-2Y(St)HSWAH 14C0.75	14x1x0.75	0.55	1.1	12.2	0.9	1.5
RE-2Y(St)HSWAH 16C0.75	16x1x0.75	0.55	1.1	12.9	0.9	1.5
RE-2Y(St)HSWAH 20C0.75	20x1x0.75	0.55	1.1	14.3	0.9	1.5
RE-2Y(St)HSWAH 24C0.75	24x1x0.75	0.55	1.2	16.0	0.9	1.5
RE-2Y(St)HSWAH 27C0.75	27x1x0.75	0.55	1.2	16.3	0.9	1.6
RE-2Y(St)HSWAH 30C0.75	30x1x0.75	0.55	1.2	16.9	0.9	1.6
RE-2Y(St)HSWAH 37C0.75	37x1x0.75	0.55	1.2	18.2	1.25	1.6
RE-2Y(St)HSWAH 40C0.75	40x1x0.75	0.55	1.3	19.1	1.25	1.6
1.0mm2, Multicore
RE-2Y(St)HSWAH 2C1.0	2x1x1.0	0.55	0.9	6.9	0.9	1.3
RE-2Y(St)HSWAH 3C1.0	3x1x1.0	0.55	0.9	7.3	0.9	1.3
RE-2Y(St)HSWAH 4C1.0	4x1x1.0	0.55	0.9	7.9	0.9	1.4
RE-2Y(St)HSWAH 5C1.0	5x1x1.0	0.55	0.9	8.6	0.9	1.4
RE-2Y(St)HSWAH 8C1.0	8x1x1.0	0.55	1.0	10.3	0.9	1.4
RE-2Y(St)HSWAH 10C1.0	10x1x1.0	0.55	1.0	11.9	0.9	1.4
RE-2Y(St)HSWAH 12C1.0	12x1x1.0	0.55	1.0	12.2	0.9	1.5
RE-2Y(St)HSWAH 14C1.0	14x1x1.0	0.55	1.1	13.0	0.9	1.5
RE-2Y(St)HSWAH 16C1.0	16x1x1.0	0.55	1.1	13.7	0.9	1.5
RE-2Y(St)HSWAH 20C1.0	20x1x1.0	0.55	1.1	15.2	0.9	1.5
RE-2Y(St)HSWAH 24C1.0	24x1x1.0	0.55	1.2	17.0	0.9	1.6
RE-2Y(St)HSWAH 27C1.0	27x1x1.0	0.55	1.2	17.4	1.25	1.6
RE-2Y(St)HSWAH 30C1.0	30x1x1.0	0.55	1.2	18.0	1.25	1.6
RE-2Y(St)HSWAH 37C1.0	37x1x1.0	0.55	1.2	19.6	1.25	1.6
RE-2Y(St)HSWAH 40C1.0	40x1x1.0	0.55	1.3	20.4	1.25	1.7
1.3mm2, Multicore
RE-2Y(St)HSWAH 2C1.3	2x1x1.3	0.6	0.9	7.4	0.9	1.3
RE-2Y(St)HSWAH 3C1.3	3x1x1.3	0.6	0.9	7.9	0.9	1.3
RE-2Y(St)HSWAH 4C1.3	4x1x1.3	0.6	0.9	8.5	0.9	1.4
RE-2Y(St)HSWAH 5C1.3	5x1x1.3	0.6	1.0	9.5	0.9	1.4
RE-2Y(St)HSWAH 8C1.3	8x1x1.3	0.6	1.0	11.2	0.9	1.4
RE-2Y(St)HSWAH 10C1.3	10x1x1.3	0.6	1.1	13.2	0.9	1.5
RE-2Y(St)HSWAH 12C1.3	12x1x1.3	0.6	1.1	13.6	0.9	1.5
RE-2Y(St)HSWAH 14C1.3	14x1x1.3	0.6	1.1	14.3	0.9	1.5
RE-2Y(St)HSWAH 16C1.3	16x1x1.3	0.6	1.1	15.0	0.9	1.5
RE-2Y(St)HSWAH 20C1.3	20x1x1.3	0.6	1.2	16.9	0.9	1.6
RE-2Y(St)HSWAH 24C1.3	24x1x1.3	0.6	1.2	18.7	1.25	1.6
RE-2Y(St)HSWAH 27C1.3	27x1x1.3	0.6	1.3	19.3	1.25	1.6
RE-2Y(St)HSWAH 30C1.3	30x1x1.3	0.6	1.3	20.0	1.25	1.6
RE-2Y(St)HSWAH 37C1.3	37x1x1.3	0.6	1.3	21.6	1.25	1.7
RE-2Y(St)HSWAH 40C1.3	40x1x1.3	0.6	1.4	22.7	1.25	1.7
1.5mm2, Multicore
RE-2Y(St)HSWAH 2C1.5	2x1x1.5	0.6	0.9	7.7	0.9	1.3
RE-2Y(St)HSWAH 3C1.5	3x1x1.5	0.6	0.9	8.1	0.9	1.4
RE-2Y(St)HSWAH 4C1.5	4x1x1.5	0.6	0.9	8.8	0.9	1.4
RE-2Y(St)HSWAH 5C1.5	5x1x1.5	0.6	1.0	9.8	0.9	1.4
RE-2Y(St)HSWAH 8C1.5	8x1x1.5	0.6	1.0	11.6	0.9	1.4
RE-2Y(St)HSWAH 10C1.5	10x1x1.5	0.6	1.1	13.7	0.9	1.5
RE-2Y(St)HSWAH 12C1.5	12x1x1.5	0.6	1.1	14.1	0.9	1.5
RE-2Y(St)HSWAH 14C1.5	14x1x1.5	0.6	1.1	14.8	0.9	1.5
RE-2Y(St)HSWAH 16C1.5	16x1x1.5	0.6	1.1	15.6	0.9	1.5
RE-2Y(St)HSWAH 20C1.5	20x1x1.5	0.6	1.2	17.6	1.25	1.6
RE-2Y(St)HSWAH 24C1.5	24x1x1.5	0.6	1.3	19.6	1.25	1.6
RE-2Y(St)HSWAH 27C1.5	27x1x1.5	0.6	1.3	20.1	1.25	1.6
RE-2Y(St)HSWAH 30C1.5	30x1x1.5	0.6	1.3	20.8	1.25	1.7
RE-2Y(St)HSWAH 37C1.5	37x1x1.5	0.6	1.4	22.6	1.25	1.7
RE-2Y(St)HSWAH 40C1.5	40x1x1.5	0.6	1.4	23.6	1.25	1.7
2.5mm2, Multicore
RE-2Y(St)HSWAH 2C2.5	2x1x2.5	0.7	0.9	8.9	0.9	1.4
RE-2Y(St)HSWAH 3C2.5	3x1x2.5	0.7	1.0	9.7	0.9	1.4
RE-2Y(St)HSWAH 4C2.5	4x1x2.5	0.7	1.0	10.5	0.9	1.4
RE-2Y(St)HSWAH 5C2.5	5x1x2.5	0.7	1.0	11.9	0.9	1.4
RE-2Y(St)HSWAH 8C2.5	8x1x2.5	0.7	1.1	13.9	0.9	1.5
RE-2Y(St)HSWAH 10C2.5	10x1x2.5	0.7	1.2	16.3	0.9	1.6
RE-2Y(St)HSWAH 12C2.5	12x1x2.5	0.7	1.2	16.9	0.9	1.6
RE-2Y(St)HSWAH 14C2.5	14x1x2.5	0.7	1.2	17.7	1.25	1.6
RE-2Y(St)HSWAH 16C2.5	16x1x2.5	0.7	1.3	18.9	1.25	1.6
RE-2Y(St)HSWAH 20C2.5	20x1x2.5	0.7	1.3	21.1	1.25	1.7
RE-2Y(St)HSWAH 24C2.5	24x1x2.5	0.7	1.4	23.6	1.25	1.7
RE-2Y(St)HSWAH 27C2.5	27x1x2.5	0.7	1.4	24.1	1.25	1.8
RE-2Y(St)HSWAH 30C2.5	30x1x2.5	0.7	1.5	25.2	1.25	1.8
RE-2Y(St)HSWAH 37C2.5	37x1x2.5	0.7	1.5	27.2	1.25	1.8
RE-2Y(St)HSWAH 40C2.5	40x1x2.5	0.7	1.6	28.5	1.25	1.9

Note : Other conductor sizes & core configurations are available upon request.
