EN 50288-7 STANDARDS XLPE Insulated, LSZH Sheathed & Overall Screened Instrumentation Cables (Multicore)
RE-2X(St)H 90°C/500V

APPLICATION

The LSZH sheathed cables are generally use for indoor installation and suitable for wet and damp areas. Generally, the cables are used within industrial process manufacturing plants for communication, data and voice transmission signals and services.Also used for the interconnection of electrical equipment and instruments, the LSZH sheath can reduce toxic smoke and fume emission.

STANDARDS

Basic design to EN 50288-7

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test)

EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*

Note: Asterisk * denotes superseded standard, ** denotes Test temperature +60°C, duration 4h. Retention: min 60% of tensile strength/min.60% of elongation, *** denotes optional.

VOLTAGE RATING

500V

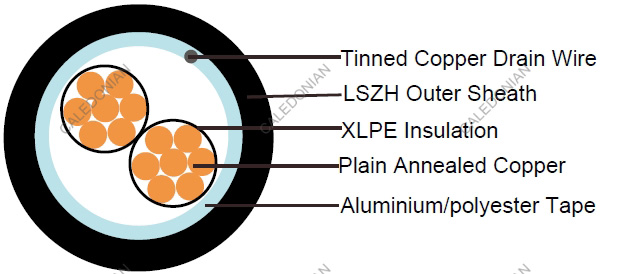

CABLE CONSTRUCTION

• Conductor: Annealed copper solid or plain copper stranded to IEC 60228 Class 2.
• Insulation: Extruded cross-linked XLPE compound, EN 50290. 2-29.
• Overall Screen: Aluminium/polyester tape with tinned copper drain wire, 0.5mm2
• Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered.). UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option.

COLOUR CODE

Insulation: Black numbered
Outer Sheath: Black, blue for intrinsically safe systems

PHYSICAL andTHERMAL PROPERTIES

• Temperature Range During Operation (Fixed State): -30°C – +90°C
• Temperature Range During Installation (Mobile State): -5°C – +50C
• Minimum Bending Radius: 7.5 X Overall Diameter

ELECTRICAL ROPERTIES

Conductor Area Size		mm2	0.5	0.75	1.0	1.3	1.5	2.5
Insulation thickness (nominal)		mm	0.55	0.55	0.55	0.6	0.6	0.7
Conductor resistance (20°C)		Ω/km	36.7	25.0	18.5	14.2	12.3	7.4
Insulation resistance (20°C)		MΩ.km(Min.)	1000
Mutual Capacitance (1 kHz)		pF/m(Max.)	115
Capacitance unbalance(1 kHz)		pF/500 m (Max.)	500
L / R (ratio) (max.)		μH/Ω	25	25	25	40	40	60
Operating voltage		V	500
Test Voltage Urms	Core to Core	V	2000
	Core to Screen	V	2000

CONSTRUCTION PARAMETERS

Caledonian Cable Code?	RE-2X(St)H
	No. of Core x1xCross Section	Nominal Insulation Thickness	Nominal Sheath Thickness
	No.x1xmm2	mm	mm
0.5mm2, Multicore
RE-2X(St)H 2C0.5	2x1x0.5	0.55	0.9
RE-2X(St)H 3C0.5	3x1x0.5	0.55	0.9
RE-2X(St)H 4C0.5	4x1x0.5	0.55	0.9
RE-2X(St)H 5C0.5	5x1x0.5	0.55	0.9
RE-2X(St)H 8C0.5	8x1x0.5	0.55	1.0
RE-2X(St)H 10C0.5	10x1x0.5	0.55	1.0
RE-2X(St)H 12C0.5	12x1x0.5	0.55	1.0
RE-2X(St)H 14C0.5	14x1x0.5	0.55	1.0
RE-2X(St)H 16C0.5	16x1x0.5	0.55	1.1
RE-2X(St)H 20C0.5	20x1x0.5	0.55	1.1
RE-2X(St)H 24C0.5	24x1x0.5	0.55	1.1
RE-2X(St)H 27C0.5	27x1x0.5	0.55	1.2
RE-2X(St)H 30C0.5	30x1x0.5	0.55	1.2
RE-2X(St)H 37C0.5	37x1x0.5	0.55	1.2
RE-2X(St)H 40C0.5	40x1x0.5	0.55	1.2
0.75mm2, Multicore
RE-2X(St)H 2C0.75	2x1x0.75	0.55	0.9
RE-2X(St)H 3C0.75	3x1x0.75	0.55	0.9
RE-2X(St)H 4C0.75	4x1x0.75	0.55	0.9
RE-2X(St)H 5C0.75	5x1x0.75	0.55	0.9
RE-2X(St)H 8C0.75	8x1x0.75	0.55	1.0
RE-2X(St)H 10C0.75	10x1x0.75	0.55	1.0
RE-2X(St)H 12C0.75	12x1x0.75	0.55	1.0
RE-2X(St)H 14C0.75	14x1x0.75	0.55	1.1
RE-2X(St)H 16C0.75	16x1x0.75	0.55	1.1
RE-2X(St)H 20C0.75	20x1x0.75	0.55	1.1
RE-2X(St)H 24C0.75	24x1x0.75	0.55	1.2
RE-2X(St)H 27C0.75	27x1x0.75	0.55	1.2
RE-2X(St)H 30C0.75	30x1x0.75	0.55	1.2
RE-2X(St)H 37C0.75	37x1x0.75	0.55	1.2
RE-2X(St)H 40C0.75	40x1x0.75	0.55	1.3
1.0mm2, Multicore
RE-2X(St)H 2C1.0	2x1x1.0	0.55	0.9
RE-2X(St)H 3C1.0	3x1x1.0	0.55	0.9
RE-2X(St)H 4C1.0	4x1x1.0	0.55	0.9
RE-2X(St)H 5C1.0	5x1x1.0	0.55	0.9
RE-2X(St)H 8C1.0	8x1x1.0	0.55	1.0
RE-2X(St)H 10C1.0	10x1x1.0	0.55	1.0
RE-2X(St)H 12C1.0	12x1x1.0	0.55	1.0
RE-2X(St)H 14C1.0	14x1x1.0	0.55	1.1
RE-2X(St)H 16C1.0	16x1x1.0	0.55	1.1
RE-2X(St)H 20C1.0	20x1x1.0	0.55	1.1
RE-2X(St)H 24C1.0	24x1x1.0	0.55	1.2
RE-2X(St)H 27C1.0	27x1x1.0	0.55	1.2
RE-2X(St)H 30C1.0	30x1x1.0	0.55	1.2
RE-2X(St)H 37C1.0	37x1x1.0	0.55	1.2
RE-2X(St)H 40C1.0	40x1x1.0	0.55	1.3
1.3mm2, Multicore
RE-2X(St)H 2C1.3	2x1x1.3	0.6	0.9
RE-2X(St)H 3C1.3	3x1x1.3	0.6	0.9
RE-2X(St)H 4C1.3	4x1x1.3	0.6	0.9
RE-2X(St)H 5C1.3	5x1x1.3	0.6	1.0
RE-2X(St)H 8C1.3	8x1x1.3	0.6	1.0
RE-2X(St)H 10C1.3	10x1x1.3	0.6	1.1
RE-2X(St)H 12C1.3	12x1x1.3	0.6	1.1
RE-2X(St)H 14C1.3	14x1x1.3	0.6	1.1
RE-2X(St)H 16C1.3	16x1x1.3	0.6	1.1
RE-2X(St)H 20C1.3	20x1x1.3	0.6	1.2
RE-2X(St)H 24C1.3	24x1x1.3	0.6	1.2
RE-2X(St)H 27C1.3	27x1x1.3	0.6	1.3
RE-2X(St)H 30C1.3	30x1x1.3	0.6	1.3
RE-2X(St)H 37C1.3	37x1x1.3	0.6	1.3
RE-2X(St)H 40C1.3	40x1x1.3	0.6	1.4
1.5mm2, Multicore
RE-2X(St)H 2C1.5	2x1x1.5	0.6	0.9
RE-2X(St)H 3C1.5	3x1x1.5	0.6	0.9
RE-2X(St)H 4C1.5	4x1x1.5	0.6	0.9
RE-2X(St)H 5C1.5	5x1x1.5	0.6	1.0
RE-2X(St)H 8C1.5	8x1x1.5	0.6	1.0
RE-2X(St)H 10C1.5	10x1x1.5	0.6	1.1
RE-2X(St)H 12C1.5	12x1x1.5	0.6	1.1
RE-2X(St)H 14C1.5	14x1x1.5	0.6	1.1
RE-2X(St)H 16C1.5	16x1x1.5	0.6	1.1
RE-2X(St)H 20C1.5	20x1x1.5	0.6	1.2
RE-2X(St)H 24C1.5	24x1x1.5	0.6	1.3
RE-2X(St)H 27C1.5	27x1x1.5	0.6	1.3
RE-2X(St)H 30C1.5	30x1x1.5	0.6	1.3
RE-2X(St)H 37C1.5	37x1x1.5	0.6	1.4
RE-2X(St)H 40C1.5	40x1x1.5	0.6	1.4
2.5mm2, Multicore
RE-2X(St)H 2C2.5	2x1x2.5	0.7	0.9
RE-2X(St)H 3C2.5	3x1x2.5	0.7	1.0
RE-2X(St)H 4C2.5	4x1x2.5	0.7	1.0
RE-2X(St)H 5C2.5	5x1x2.5	0.7	1.0
RE-2X(St)H 8C2.5	8x1x2.5	0.7	1.1
RE-2X(St)H 10C2.5	10x1x2.5	0.7	1.2
RE-2X(St)H 12C2.5	12x1x2.5	0.7	1.2
RE-2X(St)H 14C2.5	14x1x2.5	0.7	1.2
RE-2X(St)H 16C2.5	16x1x2.5	0.7	1.3
RE-2X(St)H 20C2.5	20x1x2.5	0.7	1.3
RE-2X(St)H 24C2.5	24x1x2.5	0.7	1.4
RE-2X(St)H 27C2.5	27x1x2.5	0.7	1.4
RE-2X(St)H 30C2.5	30x1x2.5	0.7	1.5
RE-2X(St)H 37C2.5	37x1x2.5	0.7	1.5
RE-2X(St)H 40C2.5	40x1x2.5	0.7	1.6
