EN 50288-7 STANDARDS PVC Insulated, PVC Sheathed & Overall Screened, Armoured Instrumentation Cables (Multipair)

RE-Y(St)YSWAY 90°C / 300V

APPLICATION

For transmission of analogue and digital signals in instrument and control systems; allowed for use in zone 1 and zone 2, group II, classified areas (IEC 79-14), not allowed for direct connection to low impedance sources, e.g. public mains electricity supply. Recommended for indoor and outerdoor installation, on racks, trays, in conduits, in dry and wet locations; not for direct buiral. Recommended for use as fire protection messure for people and important material assets.

STANDARDS

Basic design to EN 50288-7

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test)

EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*

Note: Asterisk * denotes superseded standard, *** denotes optional.

VOLTAGE RATING

300V

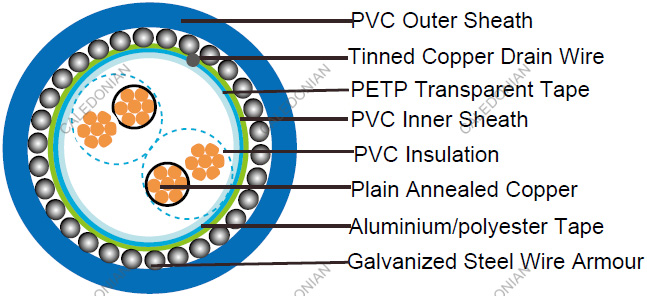

CABLE CONSTRUCTION

• Conductor: Annealed copper solid or plain copper stranded to IEC 60228 Class 2.
• Insulation: PVC compound as per EN 50290-2-21.
• Pairs: Two insulated conductors uniformly twisted together with a lay not exceeding 100mm
• Binder tape: PETP transparent tape
• Overall Screen: Aluminium/polyester tape is applied over the laid up pairs metallic side down in contact with tinned copper drain wire, 0.5mm2
• Inner Sheath: Thermoplastic PVC compound as per EN 50290-2-22.
• Amouring: Galvanized steel wire armour
• Outer Sheath: Thermoplastic PVC compound as per EN 50290-2-22. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request.

COLOUR CODE

• Insulation: Black / White, continuously numbered on white core(1, 2..)for multipair.
• Outer Sheath: Black or blue for intrinsically safe systems

PHYSICAL and THERMAL PROPERTIES

• Temperature Range During Operation (Fixed State): -30°C – +90°C

• Temperature Range During Installation (Mobile State): -5°C – +50°C
• Minimum Bending Radius: 10 X Overall Diameter
• Sunlight Resistance: UL 1581 section 1200
• Oil Resistance: ICEA S-73-532(Test temperature +60°C, duration 4h. Retention: min 60% of tensile strength/min.60% of elongation)

ELECTRICAL ROPERTIES

Conductor Area Size		mm2	0.5	0.75	1.0	1.3	1.5
Insulation thickness (nominal)		mm	0.35	0.38	0.4	0.45	0.45
Conductor resistance (20°C)		Ω/km	36.7	25	18.5	14.2	12.3
Insulation resistance (20°C)		MΩ.km(Min.)	5000
Mutual Capacitance (1 kHz)		pF/m(Max.)	??
		up to 4 pairs	90	90	90	102	102
		above 4 pairs	75	75	75	85	85
Capacitance unbalance(1 kHz)		pF/500 m (Max.)	500
Inductance		mH/km (Max.)	1
L / R (ratio) (max.)		μH/Ω	25	25	25	40	40
Operating voltage Urms		V	300
Test Voltage	Core to Core	V	1500
	Core to Screen	V	1500

CONSTRUCTION PARAMETERS

Caledonian Cable Code	RE-Y(St)YSWAY
	No. of Pairs x2xCross Section	Nominal Insulation Thickness	Nominal Inner Sheath Thickness	Nominal Overall Diameter Over Inner Sheath	Nominal Armour Wire Diameter	Nominal Outer Sheath Thickness
	No.x2xmm2	2	mm	mm	mm	mm
0.5mm2, Multipair
RE-Y(St)YSWAY 2P0.5	2x2x0.5	0.35	0.9	7.6	0.9	1.3
RE-Y(St)YSWAY 4P0.5	4x2x0.5	0.35	0.9	8.8	0.9	1.4
RE-Y(St)YSWAY 5P0.5	5x2x0.5	0.35	1.0	9.8	0.9	1.4
RE-Y(St)YSWAY 6P0.5	6x2x0.5	0.35	1.0	10.6	0.9	1.4
RE-Y(St)YSWAY 8P0.5	8x2x0.5	0.35	1.0	11.3	0.9	1.4
RE-Y(St)YSWAY 10P0.5	10x2x0.5	0.35	1.1	12.9	0.9	1.5
RE-Y(St)YSWAY 12P0.5	12x2x0.5	0.35	1.1	13.5	0.9	1.5
RE-Y(St)YSWAY 16P0.5	16x2x0.5	0.35	1.1	15.2	0.9	1.5
RE-Y(St)YSWAY 20P0.5	20x2x0.5	0.35	1.2	16.9	0.9	1.6
RE-Y(St)YSWAY 24P0.5	24x2x0.5	0.35	1.2	18.3	1.25	1.6
0.75mm2, Multipair
RE-Y(St)YSWAY 2P0.75	2x2x0.75	0.38	0.9	8.5	0.9	1.4
RE-Y(St)YSWAY 4P0.75	3x2x0.75	0.38	1.0	10.0	0.9	1.4
RE-Y(St)YSWAY 5P0.75	4x2x0.75	0.38	1.0	10.9	0.9	1.4
RE-Y(St)YSWAY 6P0.75	5x2x0.75	0.38	1.0	11.8	0.9	1.4
RE-Y(St)YSWAY 8P0.75	8x2x0.75	0.38	1.1	12.8	0.9	1.5
RE-Y(St)YSWAY 10P0.75	10x2x0.75	0.38	1.1	14.5	0.9	1.5
RE-Y(St)YSWAY 12P0.75	12x2x0.75	0.38	1.1	15.1	0.9	1.5
RE-Y(St)YSWAY 16P0.75	16x2x0.75	0.38	1.2	17.3	0.9	1.6
RE-Y(St)YSWAY 20P0.75	20x2x0.75	0.38	1.3	19.2	1.25	1.6
RE-Y(St)YSWAY 24P0.75	24x2x0.75	0.38	1.3	20.8	1.25	1.6
1.0mm2, Multipair
RE-Y(St)YSWAY 2P1.0	2x2x1.0	0.4	0.9	9.2	0.9	1.4
RE-Y(St)YSWAY 4P1.0	3x2x1.0	0.4	1.0	10.9	0.9	1.4
RE-Y(St)YSWAY 5P1.0	4x2x1.0	0.4	1.0	11.9	0.9	1.4
RE-Y(St)YSWAY 6P1.0	5x2x1.0	0.4	1.0	13.0	0.9	1.4
RE-Y(St)YSWAY 8P1.0	8x2x1.0	0.4	1.1	14.0	0.9	1.5
RE-Y(St)YSWAY 10P1.0	10x2x1.0	0.4	1.1	15.9	0.9	1.5
RE-Y(St)YSWAY 12P1.0	12x2x1.0	0.4	1.2	16.8	0.9	1.5
RE-Y(St)YSWAY 16P1.0	16x2x1.0	0.4	1.2	19.0	1.25	1.6
RE-Y(St)YSWAY 20P1.0	20x2x1.0	0.4	1.3	21.1	1.25	1.7
RE-Y(St)YSWAY 24P1.0	24x2x1.0	0.4	1.4	23.1	1.25	1.7
1.3mm2, Multipair
RE-Y(St)YSWAY 2P1.3	2x2x1.3	0.45	1.0	10.4	0.9	1.4
RE-Y(St)YSWAY 4P1.3	3x2x1.3	0.45	1.0	12.0	0.9	1.4
RE-Y(St)YSWAY 5P1.3	4x2x1.3	0.45	1.1	13.4	0.9	1.5
RE-Y(St)YSWAY 6P1.3	5x2x1.3	0.45	1.1	14.6	0.9	1.5
RE-Y(St)YSWAY 8P1.3	8x2x1.3	0.45	1.2	15.7	0.9	1.5
RE-Y(St)YSWAY 10P1.3	10x2x1.3	0.45	1.2	17.9	0.9	1.6
RE-Y(St)YSWAY 12P1.3	12x2x1.3	0.45	1.3	18.9	1.25	1.6
RE-Y(St)YSWAY 16P1.3	16x2x1.3	0.45	1.3	21.4	1.25	1.7
RE-Y(St)YSWAY 20P1.3	20x2x1.3	0.45	1.4	23.8	1.25	1.8
RE-Y(St)YSWAY 24P1.3	24x2x1.3	0.45	1.5	25.9	1.25	1.8
1.5mm2, Multipair
RE-Y(St)YSWAY 2P1.5	2x2x1.5	0.45	1.0	10.8	0.9	1.4
RE-Y(St)YSWAY 4P1.5	3x2x1.5	0.45	1.1	12.7	0.9	1.5
RE-Y(St)YSWAY 5P1.5	4x2x1.5	0.45	1.1	14.0	0.9	1.5
RE-Y(St)YSWAY 6P1.5	5x2x1.5	0.45	1.2	15.2	0.9	1.5
RE-Y(St)YSWAY 8P1.5	8x2x1.5	0.45	1.2	16.4	0.9	1.6
RE-Y(St)YSWAY 10P1.5	10x2x1.5	0.45	1.3	18.8	1.25	1.6
RE-Y(St)YSWAY 12P1.5	12x2x1.5	0.45	1.3	19.7	1.25	1.7
RE-Y(St)YSWAY 16P1.5	16x2x1.5	0.45	1.4	22.5	1.25	1.7
RE-Y(St)YSWAY 20P1.5	20x2x1.5	0.45	1.5	25.0	1.25	1.8
RE-Y(St)YSWAY 24P1.5	24x2x1.5	0.45	1.5	27.1	1.25	1.8

Note: Other conductor sizes & core configurations are available upon request.
