EN 50288-7 STANDARDS PVC Insulated, PVC Sheathed, Individual & Overall Screened, Armoured Instrumentation Cables (Multitriple)

RE-Y(St)YSWAY-TIMF 70°C / 300 V

APPLICATION

For transmission of analogue and digital signals in instrument and control systems; allowed for use in zone 1 and zone 2, group II, classified areas (IEC 79-14), not allowed for direct connection to low impedance sources, e.g. public mains electricity supply. Recommended for indoor and outerdoor installation, on racks, trays, in conduits, in dry and wet locations; not for direct buiral. Recommended for use as fire protection messure for people and important material assets.

STANDARDS

Basic design to EN 50288-7

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test) EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*

Note: Asterisk * denotes superseded standard, *** denotes optional.

VOLTAGE RATING

300V

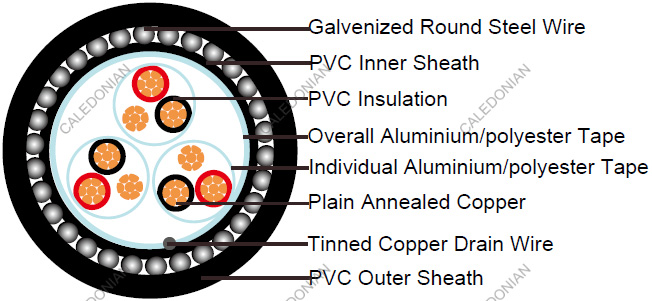

CABLE CONSTRUCTION

EN50288-7

  • Conductor: Annealed copper solid or plain copper stranded to IEC 60228 Class 2.
  • Insulation: PVC compound as per EN 50290-2-21.
  • Individual Screen: Aluminium/polyester tape is applied over each pair metallic side down in contact with tinned copper drain wire, 0.5mm2
  • Pair:Two conductors twisted to form a pair
  • Lay-up: Pairs laid up in layers of optimum pitch
  • Separator: Polyester tape
  • Overall Screen: Aluminium/polyester tape with tinned copper drain wire, 0.5mm2
  • Inner Sheath: Thermoplastic PVC compound
  • Armour: Galvenized round steel wire, EN 10257-1
  • Outer Sheath: Thermoplastic PVC compound as per EN 50290-2-22. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request.

COLOUR CODE

  • Insulation: Black / White / Red, continuously numbered on white core(1, 2..)for multitriples.
  • Outer Sheath: Black or blue for intrinsically safe systems

PHYSICAL and THERMAL PROPERTIES

  • Temperature Range During Operation (Fixed State): -30°C – +70°C
  • Temperature Range During Installation (Mobile State): -5°C – +50°C
  • Minimum Bending Radius: 7.5 X Overall Diameter
  • Sunlight Resistance: UL 1581 section 1200
  • Oil Resistance: ICEA S-73-532(Test temperature +60°C, duration 4h. Retention: min 60% of tensile strength/min.60% of elongation)

ELECTRICAL ROPERTIES

Conductor Area Size mm2 0.5 0.75 1.0 1.3 1.5
Insulation thickness (nominal) mm 0.35 0.38 0.4 0.45 0.45
Conductor resistance (20°C) Ω/km 36.7 25 18.5 14.2 12.3
Insulation resistance (20°C) MΩ.km(Min.) 5000
Mutual Capacitance (1 kHz) pF/m(Max.) 115
Inductance mH/km(Max.) 1
Capacitance unbalance(1 kHz) pF/500 m (Max.) 500
L / R (ratio) (max.) μH/Ω 25 25 25 40 40
Operating voltage UrmsV   300

Test Voltage

Core to Core V 1500
Core to Screen V 1500

CONSTRUCTION PARAMETERS

Caledonian Cable Code RE-Y(St)YSWAY-TiMF
No. of Triples x3xCross Section Nominal Insulation Thickness Nominal Inner Sheath Thickness Nominal Overall Diameter Over Inner Sheath Nominal Armour Wire Diameter Nominal Outer Sheath Thickness
  No.x3xmm2 mm mm mm mm mm
0.5mm2, Multi-striple
RE-Y(St)YSWAY-TiMF 2T0.5 2x3x0.5 0.35 1.0 9.7 0.9 1.4
RE-Y(St)YSWAY-TiMF 4T0.5 4x3x0.5 0.35 1.0 11.1 0.9 1.4
RE-Y(St)YSWAY-TiMF 5T0.5 5x3x0.5 0.35 1.1 12.4 0.9 1.5
RE-Y(St)YSWAY-TiMF 6T0.5 6x3x0.5 0.35 1.1 14.0 0.9 1.5
RE-Y(St)YSWAY-TiMF 8T0.5 8x3x0.5 0.35 1.1 14.9 0.9 1.5
RE-Y(St)YSWAY-TiMF 10T0.5 10x3x0.5 0.35 1.2 17.0 1.25 1.6
RE-Y(St)YSWAY-TiMF 12T0.5 12x3x0.5 0.35 1.2 17.6 1.25 1.6
RE-Y(St)YSWAY-TiMF 16T0.5 16x3x0.5 0.35 1.3 20.1 1.25 1.7
RE-Y(St)YSWAY-TiMF 20T0.5 20x3x0.5 0.35 1.4 22.3 1.25 1.7
RE-Y(St)YSWAY-TiMF 24T0.5 24x3x0.5 0.35 1.5 24.4 1.25 1.8
0.75mm2, Multi-striple
RE-Y(St)YSWAY-TiMF 2T0.75 2x3x0.75 0.38 1.0 10.6 0.9 1.4
RE-Y(St)YSWAY-TiMF 4T0.75 4x3x0.75 0.38 1.1 12.4 0.9 1.5
RE-Y(St)YSWAY-TiMF 5T0.75 5x3x0.75 0.38 1.1 13.7 0.9 1.5
RE-Y(St)YSWAY-TiMF 6T0.75 6x3x0.75 0.38 1.1 15.4 0.9 1.5
RE-Y(St)YSWAY-TiMF 8T0.75 8x3x0.75 0.38 1.2 16.7 0.9 1.6
RE-Y(St)YSWAY-TiMF 10T0.75 10x3x0.75 0.38 1.3 19.0 1.25 1.6
RE-Y(St)YSWAY-TiMF 12T0.75 12x3x0.75 0.38 1.3 19.7 1.25 1.7
RE-Y(St)YSWAY-TiMF 16T0.75 16x3x0.75 0.38 1.4 22.5 1.25 1.7
RE-Y(St)YSWAY-TiMF 20T0.75 20x3x0.75 0.38 1.5 24.9 1.25 1.8
RE-Y(St)YSWAY-TiMF 24T0.75 24x3x0.75 0.38 1.6 27.2 1.25 1.9
1.0mm2, Multi-striple
RE-Y(St)YSWAY-TiMF 2T1.0 2x3x1 0.4 1.0 11.5 0.9 1.4
RE-Y(St)YSWAY-TiMF 4T1.0 4x3x1 0.4 1.1 13.4 0.9 1.5
RE-Y(St)YSWAY-TiMF 5T1.0 5x3x1 0.4 1.1 14.8 0.9 1.5
RE-Y(St)YSWAY-TiMF 6T1.0 6x3x1 0.4 1.2 16.9 0.9 1.5
RE-Y(St)YSWAY-TiMF 8T1.0 8x3x1 0.4 1.2 18.1 1.25 1.6
RE-Y(St)YSWAY-TiMF 10T1.0 10x3x1 0.4 1.3 20.7 1.25 1.7
RE-Y(St)YSWAY-TiMF 12T1.0 12x3x1 0.4 1.3 21.4 1.25 1.7
RE-Y(St)YSWAY-TiMF 16T1.0 16x3x1 0.4 1.4 24.4 1.25 1.7
RE-Y(St)YSWAY-TiMF 20T1.0 20x3x1 0.4 1.5 27.1 1.25 1.8
RE-Y(St)YSWAY-TiMF 24T1.0 24x3x1 0.4 1.6 29.6 1.6 1.9
1.3mm2, Multi-striple
RE-Y(St)YSWAY-TiMF 2T1.3 2x3x1,3 0.45 1.1 12.8 0.9 1.5
RE-Y(St)YSWAY-TiMF 4T1.3 4x3x1,3 0.45 1.1 14.7 0.9 1.5
RE-Y(St)YSWAY-TiMF 5T1.3 5x3x1,3 0.45 1.2 16.5 0.9 1.6
RE-Y(St)YSWAY-TiMF 6T1.3 6x3x1,3 0.45 1.3 18.8 1.25 1.6
RE-Y(St)YSWAY-TiMF 8T1.3 8x3x1,3 0.45 1.3 20.1 1.25 1.7
RE-Y(St)YSWAY-TiMF 10T1.3 10x3x1,3 0.45 1.4 23.0 1.25 1.8
RE-Y(St)YSWAY-TiMF 12T1.3 12x3x1,3 0.45 1.5 24.0 1.25 1.8
RE-Y(St)YSWAY-TiMF 16T1.3 16x3x1,3 0.45 1.6 27.4 1.25 1.9
RE-Y(St)YSWAY-TiMF 20T1.3 20x3x1,3 0.45 1.7 30.4 1.6 2.0
RE-Y(St)YSWAY-TiMF 24T1.3 24x3x1,3 0.45 1.8 33.1 1.6 2.0
1.5mm2, Multi-striple
RE-Y(St)YSWAY-TiMF 2T1.5 2x3x1,5 0.45 1.1 13.2 0.9 1.5
RE-Y(St)YSWAY-TiMF 4T1.5 4x3x1,5 0.45 1.2 15.4 0.9 1.5
RE-Y(St)YSWAY-TiMF 5T1.5 5x3x1,5 0.45 1.2 17.1 1.25 1.6
RE-Y(St)YSWAY-TiMF 6T1.5 6x3x1,5 0.45 1.3 19.5 1.25 1.6
RE-Y(St)YSWAY-TiMF 8T1.5 8x3x1,5 0.45 1.4 21.1 1.25 1.7
RE-Y(St)YSWAY-TiMF 10T1.5 10x3x1,5 0.45 1.5 24.1 1.25 1.8
RE-Y(St)YSWAY-TiMF 12T1.5 12x3x1,5 0.45 1.5 24.9 1.25 1.8
RE-Y(St)YSWAY-TiMF 16T1.5 16x3x1,5 0.45 1.6 28.4 1.6 1.9
RE-Y(St)YSWAY-TiMF 20T1.5 20x3x1,5 0.45 1.7 31.6 1.6 2.0
RE-Y(St)YSWAY-TiMF 24T1.5 24x3x1,5 0.45 1.8 34.4 1.6 2.1

Note : Other conductor sizes & core configurations are available upon request.
