EN 50288-7 STANDARDS PE Insulated, PVC Sheathed, Overall Screened & Armoured Instrumentation Cables (Single Triple)

RE-2Y(St)YSWAY 70°C / 300 V

APPLICATION

For transmission of analogue and digital signals in instrument and control systems; allowed for use in zone 1 and zone 2, group II, classified areas (IEC 79-14), not allowed for direct connection to low impedance sources, e.g. public mains electricity supply. Recommended for indoor and outerdoor installation, on racks, trays, in conduits, in dry and wet locations; not for direct buiral. Recommended for use as fire protection messure for people and important material assets.

STANDARDS

Basic design to EN 50288-7

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test)

EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*

Note: Asterisk * denotes superseded standard, *** denotes optional.

VOLTAGE RATING

300V

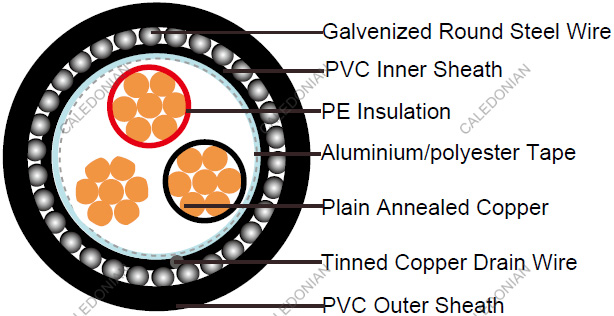

CABLE CONSTRUCTION

• Conductor: Annealed copper solid or plain copper stranded to IEC 60228 Class 2.
• Insulation: PE compound as per EN 50290. 2-23.
• Pair: Two conductors twisted to form a pair
• Lay-up: Pairs laid up in layers of optimum pitch
• Separator: Polyester tape
• Overall Screen: Aluminium/polyester tape with tinned copper drain wire, 0.5mm2
• Inner Sheath: Thermoplastic PVC compound
• Armour: Galvenized round steel wire, EN 10257-1
• Outer Sheath: Thermoplastic PVC compound as per EN 50290-2-22. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request.

COLOUR CODE

• Insulation: Black / White / Red, continuously numbered on white core(1, 2..)for multitriples.
• Outer Sheath: Black or blue for intrinsically safe systems

PHYSICAL and THERMAL PROPERTIES

• Temperature Range During Operation (Fixed State): -30°C – +70°C

• Temperature Range During Installation (Mobile State): -5°C – +50°C
• Minimum Bending Radius: 10 X Overall Diameter
• Sunlight Resistance: UL 1581 section 1200
• Oil Resistance: ICEA S-73-532(Test temperature +60°C, duration 4h. Retention: min 60% of tensile strength/min.60% of elongation)

ELECTRICAL ROPERTIES

Conductor Area Size		mm2	0.5	0.75	1.0	1.3	1.5
Insulation thickness (nominal)		mm	0.35	0.38	0.4	0.45	0.45
Conductor resistance (20°C)		Ω/km	36.7	25	18.5	14.2	12.3
Insulation resistance (20°C)		MΩ.km(Min.)	5000
Mutual Capacitance (1 kHz)		pF/m(Max.)	115
Capacitance unbalance(1 kHz)		pF/500 m (Max.)	500
Inductance		mH/km(Max.)	1
L / R (ratio) (max.)		μH/Ω	25	25	25	40	40
Operating voltage Urms		V	300
Test Voltage	Core to Core	V	1500
	Core to Screen	V	1500

CONSTRUCTION PARAMETERS

Caledonian Cable Code	RE-2Y(St)YSWAY
	No. of Triples x3xCross Section	Nominal Insulation Thick- ness	Nominal Inner Sheath Thick- ness	Nominal Overall Diameter Over Inner Sheath	Nominal Armour Wire Diameter	Nominal Outer Sheath Thick- ness
	No.x3xmm2	mm	mm	mm	mm	mm
RE-2Y(St)YSWAY 1T0.5	1x3x0.50	0.35	0.8	5.4	0.9	1.3
RE-2Y(St)YSWAY 1T0.75	1x3x0.75	0.38	0.9	6.1	0.9	1.3
RE-2Y(St)YSWAY 1T1.0	1x3x1.0	0.4	0.9	6.6	0.9	1.3
RE-2Y(St)YSWAY 1T1.3	1x3x1.3	0.45	0.9	7.2	0.9	1.3
RE-2Y(St)YSWAY 1T1.5	1x3x1.5	0.45	0.9	7.5	0.9	1.3

Note : Other conductor sizes & core configurations are available upon request.
