EN 50288-7 STANDARDS PE Insulated, PVC Sheathed & Overall Screened Instrumentation Cables (Multitriple)

RE-2Y(St)Y 70°C / 300 V

APPLICATION

For transmission of analogue and digital signals in instrument and control systems; allowed for use in zone 1 and zone 2, group II, classified areas (IEC 79-14), not allowed for direct connection to low impedance sources, e.g. public mains electricity supply. Recommended for indoor and outerdoor installation, on racks, trays, in conduits, in dry and wet locations; not for direct buiral. Recommended for use as fire protection messure for people and important material assets.

STANDARDS

Basic design to EN 50288-7

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test)

EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*

Note: Asterisk * denotes superseded standard, *** denotes optional.

VOLTAGE RATING

300V

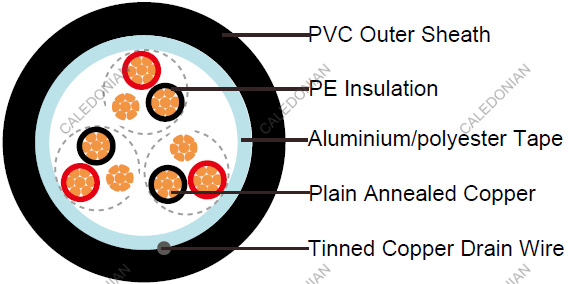

CABLE CONSTRUCTION

• Conductor: Annealed copper solid or plain copper stranded to IEC 60228 Class 2.
• Insulation: PE compound as per EN 50290. 2-23.
• Triple: Three conductors twisted to form a triple
• Lay-up: Triples laid up in layers of optimum pitch
• Separator: Polyester tape
• Overall Screen: Aluminium/polyester tape with tinned copper drain wire, 0.5mm2
• Outer Sheath: Thermoplastic PVC compound as per EN 50290-2-22. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request.

COLOUR CODE

• Insulation: Black / White / Red, continuously numbered on white core(1, 2..)for multitriples.
• Outer Sheath: Black or blue for intrinsically safe systems

PHYSICAL and THERMAL PROPERTIES

• Temperature Range During Operation (Fixed State): -30°C – +70°C

• Temperature Range During Installation (Mobile State): -5°C – +50°C
• Minimum Bending Radius: 7.5 X Overall Diameter
• Sunlight Resistance: UL 1581 section 1200
• Oil Resistance: ICEA S-73-532(Test temperature +60°C, duration 4h. Retention: min 60% of tensile strength/min.60% of elongation)

ELECTRICAL ROPERTIES

ConductorAreaSize		2	0.5	0.75	1.0	1.3	1.5
Insulationthickness(nominal)		mm	0.35	0.38	0.4	0.45	0.45
Conductorresistance(20°C)		Ω/km	36.0	24.5	18.1	13.9	12.1
Insulationresistance(20°C)		MΩ.km(Min.)	5000
MutualCapacitance(1kHz)		upto4trplespF/m(Max.)	90	90	90	102	102
?		above4trplespF/m(Max.)	75	75	75	85	85
Inductance		mH/km(Max.)	1
L/R(ratio)(max.)		μH/Ω	25	25	25	40	40
Operatingvoltage		V	300
TestVoltageUrms	CoretoCore	V	1500
	CoretoScreen	V	1500

CONSTRUCTION PARAMETERS

Caledonian Cable Code	RE-2Y(St)Y
	No. of Triples x3xCross Section	Nominal Insulation Thickness	Nominal Outer Sheath Thickness
	No.x3xmm2	mm	mm
0.5mm2, Multitriple
RE-2Y(St)Y 2T0.5	2x3x0,50	0.35	0.9
RE-2Y(St)Y 4T0.5	4x3x0,50	0.35	1.0
RE-2Y(St)Y 5T0.5	5x3x0,50	0.35	1.0
RE-2Y(St)Y 6T0.5	6x3x0,50	0.35	1.0
RE-2Y(St)Y 8T0.5	8x3x0,50	0.35	1.1
RE-2Y(St)Y 10T0.5	10x3x0,50	0.35	1.1
RE-2Y(St)Y 12T0.5	12x3x0,50	0.35	1.1
RE-2Y(St)Y 16T0.5	16x3x0,50	0.35	1.2
RE-2Y(St)Y 20T0.5	20x3x0,50	0.35	1.2
RE-2Y(St)Y 24T0.5	24x3x0,50	0.35	1.3
0.75mm2, Multitriple
RE-2Y(St)Y 2T0.75	2x3x0,75	0.38	0.9
RE-2Y(St)Y 4T0.75	4x3x0,75	0.38	1.0
RE-2Y(St)Y 5T0.75	5x3x0,75	0.38	1.0
RE-2Y(St)Y 6T0.75	6x3x0,75	0.38	1.1
RE-2Y(St)Y 8T0.75	8x3x0,75	0.38	1.1
RE-2Y(St)Y 10T0.75	10x3x0,75	0.38	1.2
RE-2Y(St)Y 12T0.75	12x3x0,75	0.38	1.2
RE-2Y(St)Y 16T0.75	16x3x0,75	0.38	1.3
RE-2Y(St)Y 20T0.75	20x3x0,75	0.38	1.3
RE-2Y(St)Y 24T0.75	24x3x0,75	0.38	1.4
1.0mm2, Multitriple
RE-2Y(St)Y 2T1.0	2x3x1	0.4	1.0
RE-2Y(St)Y 4T1.0	4x3x1	0.4	1.0
RE-2Y(St)Y 5T1.0	5x3x1	0.4	1.0
RE-2Y(St)Y 6T1.0	6x3x1	0.4	1.1
RE-2Y(St)Y 8T1.0	8x3x1	0.4	1.1
RE-2Y(St)Y 10T1.0	10x3x1	0.4	1.2
RE-2Y(St)Y 12T1.0	12x3x1	0.4	1.2
RE-2Y(St)Y 16T1.0	16x3x1	0.4	1.3
RE-2Y(St)Y 20T1.0	20x3x1	0.4	1.4
RE-2Y(St)Y 24T1.0	24x3x1	0.4	1.4
1.3mm2, Multitriple
RE-2Y(St)Y 2T1.3	2x3x1,3	0.45	1.0
RE-2Y(St)Y 4T1.3	4x3x1,3	0.45	1.1
RE-2Y(St)Y 5T1.3	5x3x1,3	0.45	1.1
RE-2Y(St)Y 6T1.3	6x3x1,3	0.45	1.2
RE-2Y(St)Y 8T1.3	8x3x1,3	0.45	1.2
RE-2Y(St)Y 10T1.3	10x3x1,3	0.45	1.3
RE-2Y(St)Y 12T1.3	12x3x1,3	0.45	1.3
RE-2Y(St)Y 16T1.3	16x3x1,3	0.45	1.4
RE-2Y(St)Y 20T1.3	20x3x1,3	0.45	1.5
RE-2Y(St)Y 24T1.3	24x3x1,3	0.45	1.6
1.5mm2, Multitriple
RE-2Y(St)Y 2T1.5	2x3x1,5	0.45	1.0
RE-2Y(St)Y 4T1.5	4x3x1,5	0.45	1.1
RE-2Y(St)Y 5T1.5	5x3x1,5	0.45	1.1
RE-2Y(St)Y 6T1.5	6x3x1,5	0.45	1.2
RE-2Y(St)Y 8T1.5	8x3x1,5	0.45	1.3
RE-2Y(St)Y 10T1.5	10x3x1,5	0.45	1.3
RE-2Y(St)Y 12T1.5	12x3x1,5	0.45	1.4
RE-2Y(St)Y 16T1.5	16x3x1,5	0.45	1.5
RE-2Y(St)Y 20T1.5	20x3x1,5	0.45	1.6
RE-2Y(St)Y 24T1.5	24x3x1,5	0.45	1.7

Note : Other conductor sizes & core configurations are available upon request.
