EN 50288-7 STANDARDS PE Insulated, PVC Sheathed & Overall Screened Instrumentation Cables (Multicore)RE-2Y(St)Y 70°C / 500V

APPLICATION

For transmission of analogue and digital signals in instrument and control systems; allowed for use in zone 1 and zone 2, group II, classified areas (IEC 79-14), not allowed for direct connection to low impedance sources, e.g. public mains electricity supply. Recommended for indoor and outerdoor installation, on racks, trays, in conduits, in dry and wet locations; not for direct buiral. Recommended for use as fire protection messure for people and important material assets.

STANDARDS

Basic design to EN 50288-7

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test)

EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*

Note: Asterisk * denotes superseded standard, *** denotes optional.

VOLTAGE RATING

500V

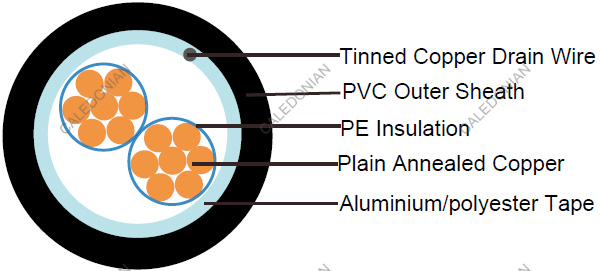

CABLE CONSTRUCTION

• Conductor: Annealed copper solid or plain copper stranded to IEC 60228 Class 2.
• Insulation: PE compound as per EN 50290. 2-23.
• Overall Screen: Aluminium/polyester tape with 0.5mm2 screen (7/0.3mm) tinned copper drain wire.
• Outer Sheath: Thermoplastic PVC compound as per EN 50290-2-22. UV resistance, hydrocarbon< resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request.

COLOUR CODE

• Insulation: Black numbered
  Outer Sheath: Black, blue for intrinsically safe systems

PHYSICAL and THERMAL PROPERTIES

• Temperature Range During Operation (Fixed State): -30°C – +70°C

• Temperature Range During Installation (Mobile State): -5°C – +50°C
• Minimum Bending Radius: 7.5 X Overall Diameter
• Sunlight Resistance: UL 1581 section 1200
• Oil Resistance: ICEA S-73-532(Test temperature +60°C, duration 4h. Retention: min 60% of tensile strength/min.60% of elongation)

ELECTRICAL ROPERTIES

Conductor Area Size		mm2	0.5	0.75	1.0	1.3	1.5	2.5
Insulation thickness (nominal)		mm	0.55	0.55	0.55	0.6	0.6	0.7
Insulation thickness (minimum)		mm	0.44	0.44	0.44	0.44	0.44	0.53
Conductor resistance (20°C)		Ω/km	36.7	25.0	18.5	14.2	12.3	7.4
Insulation resistance (20°C)		MΩ.km(Min.)	5000
Mutual Capacitance (1 kHz)		pF/m(Max.)	115
Capacitance unbalance(1 kHz)		pF/500 m (Max.)	500
L / R (ratio) (max.)		μH/Ω	25	25	25	40	40	60
Operating voltage		V	500
Test Voltage Urms	Core to Core	V	2000
	Core to Screen	V	2000

CONSTRUCTION PARAMETERS

Caledonian Cable Code	RE-2Y(St)Y
	No. of Cores x1xCross Section	Nominal Insulation Thickness	Nominal Outer Sheath Thickness
	No.x1xmm2	mm	mm
0.5mm2, Multicore
RE-2Y(St)Y 2C0.5	2x1x0.5	0.55	0.9
RE-2Y(St)Y 3C0.5	3x1x0.5	0.55	0.9
RE-2Y(St)Y 4C0.5	4x1x0.5	0.55	0.9
RE-2Y(St)Y 5C0.5	5x1x0.5	0.55	0.9
RE-2Y(St)Y 8C0.5	8x1x0.5	0.55	1.0
RE-2Y(St)Y 10C0.5	10x1x0.5	0.55	1.0
RE-2Y(St)Y 12C0.5	12x1x0.5	0.55	1.0
RE-2Y(St)Y 14C0.5	14x1x0.5	0.55	1.0
RE-2Y(St)Y 16C0.5	16x1x0.5	0.55	1.1
RE-2Y(St)Y 20C0.5	20x1x0.5	0.55	1.1
RE-2Y(St)Y 24C0.5	24x1x0.5	0.55	1.1
RE-2Y(St)Y 27C0.5	27x1x0.5	0.55	1.2
RE-2Y(St)Y 30C0.5	30x1x0.5	0.55	1.2
RE-2Y(St)Y 37C0.5	37x1x0.5	0.55	1.2
RE-2Y(St)Y 40C0.5	40x1x0.5	0.55	1.2
0.75mm2, Multicore
RE-2Y(St)Y 2C0.75	2x1x0.75	0.55	0.9
RE-2Y(St)Y 3C0.75	3x1x0.75	0.55	0.9
RE-2Y(St)Y 4C0.75	4x1x0.75	0.55	0.9
RE-2Y(St)Y 5C0.75	5x1x0.75	0.55	0.9
RE-2Y(St)Y 8C0.75	8x1x0.75	0.55	1.0
RE-2Y(St)Y 10C0.75	10x1x0.75	0.55	1.0
RE-2Y(St)Y 12C0.75	12x1x0.75	0.55	1.0
RE-2Y(St)Y 14C0.75	14x1x0.75	0.55	1.1
RE-2Y(St)Y 16C0.75	16x1x0.75	0.55	1.1
RE-2Y(St)Y 20C0.75	20x1x0.75	0.55	1.1
RE-2Y(St)Y 24C0.75	24x1x0.75	0.55	1.2
RE-2Y(St)Y 27C0.75	27x1x0.75	0.55	1.2
RE-2Y(St)Y 30C0.75	30x1x0.75	0.55	1.2
RE-2Y(St)Y 37C0.75	37x1x0.75	0.55	1.2
RE-2Y(St)Y 40C0.75	40x1x0.75	0.55	1.3
1.0mm2, Multicore
RE-2Y(St)Y 2C1.0	2x1x1.0	0.55	0.9
RE-2Y(St)Y 3C1.0	3x1x1.0	0.55	0.9
RE-2Y(St)Y 4C1.0	4x1x1.0	0.55	0.9
RE-2Y(St)Y 5C1.0	5x1x1.0	0.55	0.9
RE-2Y(St)Y 8C1.0	8x1x1.0	0.55	1.0
RE-2Y(St)Y 10C1.0	10x1x1.0	0.55	1.0
RE-2Y(St)Y 12C1.0	12x1x1.0	0.55	1.0
RE-2Y(St)Y 14C1.0	14x1x1.0	0.55	1.1
RE-2Y(St)Y 16C1.0	16x1x1.0	0.55	1.1
RE-2Y(St)Y 20C1.0	20x1x1.0	0.55	1.1
RE-2Y(St)Y 24C1.0	24x1x1.0	0.55	1.2
RE-2Y(St)Y 27C1.0	27x1x1.0	0.55	1.2
RE-2Y(St)Y 30C1.0	30x1x1.0	0.55	1.2
RE-2Y(St)Y 37C1.0	37x1x1.0	0.55	1.2
RE-2Y(St)Y 40C1.0	40x1x1.0	0.55	1.3
1.3mm2, Multicore
RE-2Y(St)Y 2C1.3	2x1x1.3	0.6	0.9
RE-2Y(St)Y 3C1.3	3x1x1.3	0.6	0.9
RE-2Y(St)Y 4C1.3	4x1x1.3	0.6	0.9
RE-2Y(St)Y 5C1.3	5x1x1.3	0.6	1.0
RE-2Y(St)Y 8C1.3	8x1x1.3	0.6	1.0
RE-2Y(St)Y 10C1.3	10x1x1.3	0.6	1.1
RE-2Y(St)Y 12C1.3	12x1x1.3	0.6	1.1
RE-2Y(St)Y 14C1.3	14x1x1.3	0.6	1.1
RE-2Y(St)Y 16C1.3	16x1x1.3	0.6	1.1
RE-2Y(St)Y 20C1.3	20x1x1.3	0.6	1.2
RE-2Y(St)Y 24C1.3	24x1x1.3	0.6	1.2
RE-2Y(St)Y 27C1.3	27x1x1.3	0.6	1.3
RE-2Y(St)Y 30C1.3	30x1x1.3	0.6	1.3
RE-2Y(St)Y 37C1.3	37x1x1.3	0.6	1.3
RE-2Y(St)Y 40C1.3	40x1x1.3	0.6	1.4
1.5mm2, Multicore
RE-2Y(St)Y 2C1.5	2x1x1.5	0.6	0.9
RE-2Y(St)Y 3C1.5	3x1x1.5	0.6	0.9
RE-2Y(St)Y 4C1.5	4x1x1.5	0.6	0.9
RE-2Y(St)Y 5C1.5	5x1x1.5	0.6	1.0
RE-2Y(St)Y 8C1.5	8x1x1.5	0.6	1.0
RE-2Y(St)Y 10C1.5	10x1x1.5	0.6	1.1
RE-2Y(St)Y 12C1.5	12x1x1.5	0.6	1.1
RE-2Y(St)Y 14C1.5	14x1x1.5	0.6	1.1
RE-2Y(St)Y 16C1.5	16x1x1.5	0.6	1.1
RE-2Y(St)Y 20C1.5	20x1x1.5	0.6	1.2
RE-2Y(St)Y 24C1.5	24x1x1.5	0.6	1.3
RE-2Y(St)Y 27C1.5	27x1x1.5	0.6	1.3
RE-2Y(St)Y 30C1.5	30x1x1.5	0.6	1.3
RE-2Y(St)Y 37C1.5	37x1x1.5	0.6	1.4
RE-2Y(St)Y 40C1.5	40x1x1.5	0.6	1.4
2.52, Multicore
RE-2Y(St)Y 2C2.5	2x1x2.5	0.7	0.9
RE-2Y(St)Y 3C2.5	3x1x2.5	0.7	1.0
RE-2Y(St)Y 4C2.5	4x1x2.5	0.7	1.0
RE-2Y(St)Y 5C2.5	5x1x2.5	0.7	1.0
RE-2Y(St)Y 8C2.5	8x1x2.5	0.7	1.1
RE-2Y(St)Y 10C2.5	10x1x2.5	0.7	1.2
RE-2Y(St)Y 12C2.5	12x1x2.5	0.7	1.2
RE-2Y(St)Y 14C2.5	14x1x2.5	0.7	1.2
RE-2Y(St)Y 16C2.5	16x1x2.5	0.7	1.3
RE-2Y(St)Y 20C2.5	20x1x2.5	0.7	1.3
RE-2Y(St)Y 24C2.5	24x1x2.5	0.7	1.4
RE-2Y(St)Y 27C2.5	27x1x2.5	0.7	1.4
RE-2Y(St)Y 30C2.5	30x1x2.5	0.7	1.5
RE-2Y(St)Y 37C2.5	37x1x2.5	0.7	1.5
RE-2Y(St)Y 40C2.5	40x1x2.5	0.7	1.6

Note : Other conductor sizes & core configurations are available upon request.
