EN 50288-7 STANDARD XLPE Insulated, PVC Sheathed & Overall Screened Instrumentation Cables (Multicore) RE-2X(St)Y 90°C / 500V

APPLICATION

For transmission of analogue and digital signals in instrument and control systems; allowed for use in zone 1 and zone 2, group II, classified areas (IEC 79-14), not allowed for direct connection to low impedance sources, e.g. public mains electricity supply. Recommended for indoor and outerdoor installation, on racks, trays, in conduits, in dry and wet locations; not for direct buiral. Recommended for use as fire protection messure for people and important material assets.

STANDARDS

Basic design to EN 50288-7

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test)

EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*

Note: Asterisk * denotes superseded standard, *** denotes optional.

VOLTAGE RATING

500V

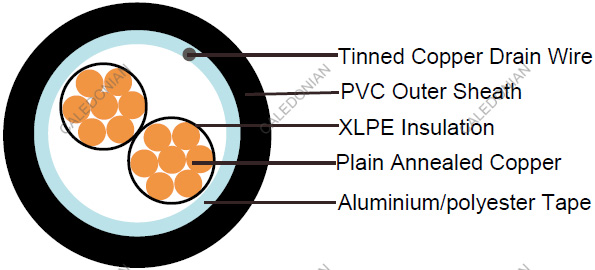

CABLE CONSTRUCTION

• Conductor: Annealed copper solid or plain copper stranded to IEC 60228 Class 2.
• Insulation: Extruded cross-linked XLPE compound as per EN 50290-2-29.
• Overall Screen: Aluminium/polyester tape with tinned copper drain wire, 0.5mm2
• Outer Sheath: Thermoplastic PVC compound as per EN 50290-2-22. UV resistance, hydrocarbon< resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request.

COLOUR CODE

• Insulation: Black numbered
• Outer Sheath: Black, blue for intrinsically safe systems

PHYSICAL and THERMAL PROPERTIES

• Temperature Range During Operation (Fixed State): -30°C – +90°C

• Temperature Range During Installation (Mobile State): -5°C – +50°C
• Minimum Bending Radius: 7.5 X Overall Diameter
• Sunlight Resistance: UL 1581 section 1200
• Oil Resistance: ICEA S-73-532(Test temperature +60°C, duration 4h. Retention: min 60% of tensile strength/min.60% of elongation)

ELECTRICAL ROPERTIES

Conductor Area Size		mm2	0.5	0.75	1.0	1.3	1.5	2.5
Insulation thickness (nominal)		mm	0.55	0.55	0.55	0.6	0.6	0.7
Conductor resistance (20°C)		Ω/km	36.7	25.0	18.5	14.2	12.3	7.4
Insulation resistance (20°C)		MΩ.km(Min.)	5000
Mutual Capacitance (1 kHz)		pF/m(Max.)	115
Capacitance unbalance(1 kHz)		pF/500 m (Max.)	500
L / R (ratio) (max.)		μH/Ω	25	25	25	40	40	60
Operating voltage		V	500
Test Voltage Urms	Core to Core	V	2000
	Core to Screen	V	2000

CONSTRUCTION PARAMETERS

Caledonian Cable Code	RE-2X(St)Y
	No. of Core x1xCross Section	Nominal Insulation Thickness	NominalSheath Thickness
	No.x1xmm2	mm	mm
0.5mm2, Multicore
RE-2X(St)Y 2C0.5	2x1x0.5	0.55	0.9
RE-2X(St)Y 3C0.5	3x1x0.5	0.55	0.9
RE-2X(St)Y 4C0.5	4x1x0.5	0.55	0.9
RE-2X(St)Y 5C0.5	5x1x0.5	0.55	0.9
RE-2X(St)Y 8C0.5	8x1x0.5	0.55	1.0
RE-2X(St)Y 10C0.5	10x1x0.5	0.55	1.0
RE-2X(St)Y 12C0.5	12x1x0.5	0.55	1.0
RE-2X(St)Y 14C0.5	14x1x0.5	0.55	1.0
RE-2X(St)Y 16C0.5	16x1x0.5	0.55	1.1
RE-2X(St)Y 20C0.5	20x1x0.5	0.55	1.1
RE-2X(St)Y 24C0.5	24x1x0.5	0.55	1.1
RE-2X(St)Y 27C0.5	27x1x0.5	0.55	1.2
RE-2X(St)Y 30C0.5	30x1x0.5	0.55	1.2
RE-2X(St)Y 37C0.5	37x1x0.5	0.55	1.2
RE-2X(St)Y 40C0.5	40x1x0.5	0.55	1.2
0.75mm2, Multicore
RE-2X(St)Y 2C0.75	2x1x0.75	0.55	0.9
RE-2X(St)Y 3C0.75	3x1x0.75	0.55	0.9
RE-2X(St)Y 4C0.75	4x1x0.75	0.55	0.9
RE-2X(St)Y 5C0.75	5x1x0.75	0.55	0.9
RE-2X(St)Y 8C0.75	8x1x0.75	0.55	1.0
RE-2X(St)Y 10C0.75	10x1x0.75	0.55	1.0
RE-2X(St)Y 12C0.75	12x1x0.75	0.55	1.0
RE-2X(St)Y 14C0.75	14x1x0.75	0.55	1.1
RE-2X(St)Y 16C0.75	16x1x0.75	0.55	1.1
RE-2X(St)Y 20C0.75	20x1x0.75	0.55	1.1
RE-2X(St)Y 24C0.75	24x1x0.75	0.55	1.2
RE-2X(St)Y 27C0.75	27x1x0.75	0.55	1.2
RE-2X(St)Y 30C0.75	30x1x0.75	0.55	1.2
RE-2X(St)Y 37C0.75	37x1x0.75	0.55	1.2
RE-2X(St)Y 40C0.75	40x1x0.75	0.55	1.3
1.0mm2, Multicore
RE-2X(St)Y 2C1.0	2x1x1.0	0.55	0.9
RE-2X(St)Y 3C1.0	3x1x1.0	0.55	0.9
RE-2X(St)Y 4C1.0	4x1x1.0	0.55	0.9
RE-2X(St)Y 5C1.0	5x1x1.0	0.55	0.9
RE-2X(St)Y 8C1.0	8x1x1.0	0.55	1.0
RE-2X(St)Y 10C1.0	10x1x1.0	0.55	1.0
RE-2X(St)Y 12C1.0	12x1x1.0	0.55	1.0
RE-2X(St)Y 14C1.0	14x1x1.0	0.55	1.1
RE-2X(St)Y 16C1.0	16x1x1.0	0.55	1.1
RE-2X(St)Y 20C1.0	20x1x1.0	0.55	1.1
RE-2X(St)Y 24C1.0	24x1x1.0	0.55	1.2
RE-2X(St)Y 27C1.0	27x1x1.0	0.55	1.2
RE-2X(St)Y 30C1.0	30x1x1.0	0.55	1.2
RE-2X(St)Y 37C1.0	37x1x1.0	0.55	1.2
RE-2X(St)Y 40C1.0	40x1x1.0	0.55	1.3
1.3mm2, Multicore
RE-2X(St)Y 2C1.3	2x1x1.3	0.6	0.9
RE-2X(St)Y 3C1.3	3x1x1.3	0.6	0.9
RE-2X(St)Y 4C1.3	4x1x1.3	0.6	0.9
RE-2X(St)Y 5C1.3	5x1x1.3	0.6	1.0
RE-2X(St)Y 8C1.3	8x1x1.3	0.6	1.0
RE-2X(St)Y 10C1.3	10x1x1.3	0.6	1.1
RE-2X(St)Y 12C1.3	12x1x1.3	0.6	1.1
RE-2X(St)Y 14C1.3	14x1x1.3	0.6	1.1
RE-2X(St)Y 16C1.3	16x1x1.3	0.6	1.1
RE-2X(St)Y 20C1.3	20x1x1.3	0.6	1.2
RE-2X(St)Y 24C1.3	24x1x1.3	0.6	1.2
RE-2X(St)Y 27C1.3	27x1x1.3	0.6	1.3
RE-2X(St)Y 30C1.3	30x1x1.3	0.6	1.3
RE-2X(St)Y 37C1.3	37x1x1.3	0.6	1.3
RE-2X(St)Y 40C1.3	40x1x1.3	0.6	1.4
1.5mm2, Multicore
RE-2X(St)Y 2C1.5	2x1x1.5	0.6	0.9
RE-2X(St)Y 3C1.5	3x1x1.5	0.6	0.9
RE-2X(St)Y 4C1.5	4x1x1.5	0.6	0.9
RE-2X(St)Y 5C1.5	5x1x1.5	0.6	1.0
RE-2X(St)Y 8C1.5	8x1x1.5	0.6	1.0
RE-2X(St)Y 10C1.5	10x1x1.5	0.6	1.1
RE-2X(St)Y 12C1.5	12x1x1.5	0.6	1.1
RE-2X(St)Y 14C1.5	14x1x1.5	0.6	1.1
RE-2X(St)Y 16C1.5	16x1x1.5	0.6	1.1
RE-2X(St)Y 20C1.5	20x1x1.5	0.6	1.2
RE-2X(St)Y 24C1.5	24x1x1.5	0.6	1.3
RE-2X(St)Y 27C1.5	27x1x1.5	0.6	1.3
RE-2X(St)Y 30C1.5	30x1x1.5	0.6	1.3
RE-2X(St)Y 37C1.5	37x1x1.5	0.6	1.4
RE-2X(St)Y 40C1.5	40x1x1.5	0.6	1.4
2.52, Multicore
RE-2X(St)Y 2C2.5	2x1x2.5	0.7	0.9
RE-2X(St)Y 3C2.5	3x1x2.5	0.7	1.0
RE-2X(St)Y 4C2.5	4x1x2.5	0.7	1.0
RE-2X(St)Y 5C2.5	5x1x2.5	0.7	1.0
RE-2X(St)Y 8C2.5	8x1x2.5	0.7	1.1
RE-2X(St)Y 10C2.5	10x1x2.5	0.7	1.2
RE-2X(St)Y 12C2.5	12x1x2.5	0.7	1.2
RE-2X(St)Y 14C2.5	14x1x2.5	0.7	1.2
RE-2X(St)Y 16C2.5	16x1x2.5	0.7	1.3
RE-2X(St)Y 20C2.5	20x1x2.5	0.7	1.3
RE-2X(St)Y 24C2.5	24x1x2.5	0.7	1.4
RE-2X(St)Y 27C2.5	27x1x2.5	0.7	1.4
RE-2X(St)Y 30C2.5	30x1x2.5	0.7	1.5
RE-2X(St)Y 37C2.5	37x1x2.5	0.7	1.5
RE-2X(St)Y 40C2.5	40x1x2.5	0.7	1.6

Note : Other conductor sizes & core configurations are available upon request.
