Fire Resistant, Unarmored 20 Conductors UV Resistant, Flame Retardant LSZH Composite Cable

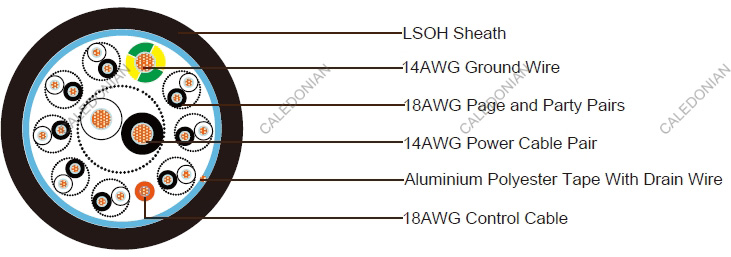

Construction:
1 Pair Power cable and 1 ground wire
Conductor |
14AWG (19/0.361mm) annealed copper |
Fire Barrier |
Mica/Glass Tape |
Insulation |
XLPE material. Thickness 0.7mm |
Insulation Color |
Black and white |
Ground wire color |
Yellow-Green |
8 Party Line and Spare Pair, 1 control wire
Conductor |
18AWG (19/0.254mm) annealed copper |
Fire Barrier |
Mica/Glass Tape |
Insulation |
XLPE material. Thickness 0.7mm |
Insulation Pair Color |
Black & White with Pair Number |
Control wire color |
Orange |
Element Assembly
Core make-up |
The power pair, ground wire, Party Line and Spare Pair, and control wire are twistedtogether. Fillers will be used if necessary. |
Binder tape |
The polyester tape is wrapped over the cable cores |
Sheath |
UV Resistant, Flame Retardant LSZH is applied over armour.. Thickness 1.5mm, Overall diameter 29.5±2.0mm |
Sheath Color |
Black |
Cable Weight |
566 kg/km |
Electrical and Physical Properties @20°C:
Power Pair, Ground Wire
Max. Conductor Resistance: 8.9Ohm/km at 20ºC
Insulation Resistance: ≥1000 MOhmxkm
Party Line and Spare Pair, Control Wire
Max. Conductor Resistance: 17.9Ohm/km at 20ºC
Insulation Resistance: ≥1000 MOhmxkm Operating Temperature: -20°C/+90°C
Voltage Rating: 600/1000V
Fire Characteristics:
Fire Resistance: IEC 60331
Flame Propagation: IEC60332-1 & IEC60332-3C
Low Smoke Capacity:IEC61034-1/2
Halogen Free:IEC60754-1/2
