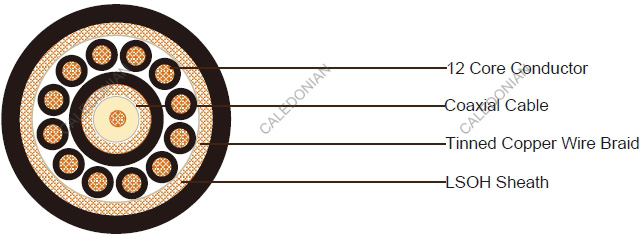

1C Coaxial Cable+12 Core Conductors Tinned Copper Wire Braid PVC Sheathed Composite Cable
Construction:
1x75Ohm Coaxial Cable
Conductor | 7/0.254mm stranded tinned copper wires |
---|---|
Insulation | Foamed polyethylene. Thickness is 1.46mm |
Shield | Braid of bare copper wire. Coverage ≥ 95% |
Sheath | PVC sheath. Nominal outer diameter: 5.28mm |
Sheath Color | Black |
12 Core Conductor
Conductor | 7/0.32mm Stranded tinned copper. wires |
---|---|
Insulation | PVC material. Thickness is 0.4mm |
Insultion Color | Blue, Brown and Green/Yellow |
Element Assembly
ShieldTinned copper wire braid, coverage 80%
Outer Sheath | LSZH, thickness 0.8mm, nominal outer diameter is 11.05mm |
---|---|
Sheath Color | Black |
Electrical and Physical Properties @20°C:
Coaxial Cable
Nom. Impedance: 75Ohm
Nom. Capacitance Conductor to Shield: 56.7pF/m (17.3pF/ft)
Nom. Velocity of Propagation: 78%
Nom. Delay: 4.26ns/m (1.3ns/ft)
Freq. (MHz) | Attenuation (dB/100m) | Attenuation (dB/100ft)) |
---|---|---|
0.5 | 0.8 | 0.24 |
1 | 1.1 | 0.34 |
5 | 2.4 | 0.73 |
10 | 3.4 | 1.04 |
100 | 10.6 | 3.23 |
200 | 15.3 | 4.67 |
400 | 21.69 | 6.62 |
om. Conductor DC Resistance: 0.047 Ohm/m (14.4 Ohm/1000ft) Nom. Inner ShieldDC Resistance: 0.0084 Ohm/m (2.55 Ohm/1000ft) Nom. Attenuation:
12C Conductor
Max. Operating Voltage: 300V
Max. Operating Voltage (overall): 300V
Element Assembly
Operating TemperatureRange: -30°C to +75°C
Min Bending Radius: 127mm
