1xRG59+3x1.5 Power Cable+2x1x2x24AWG Shielded Control Cable Without Sheath SWB LSZH Sheathed Composite Cable

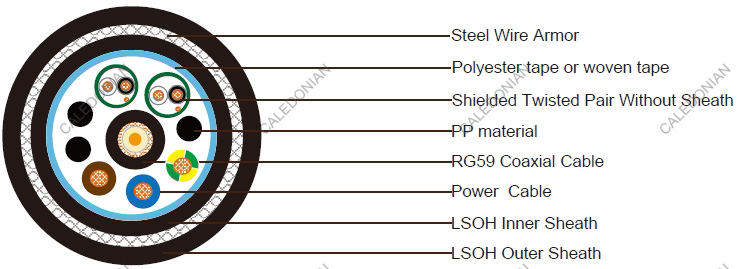

Construction:

Composite Cable

1x75Ohm RG59 Coaxial Cable

Conductor 0.58mm Solid copper conductor
Insulation Polyethylene. Thickness 1.56mm
Shield Braid of bare copper wire. Coverage ≥ 95%
Sheath LSZH sheath. Nominal outer diameter 6.15mm
Sheath Color Black

2x1x2x24 AWG Shielded Control Cable Without Sheath

Conductor 7/0.2mm Stranded tinned copper
Insulation PVC material. Thickness 0.4mm
Insulation Color White and black
Shield Aluminium polyester tape with 24 AWG stranded tinned copper drain wire

3x1.5mm² Power Cable

Conductor 1.5mm² Stranded tinned copper wire to IEC 60228 Class 2 or BS 6360
Insulation XLPE compound to BS6234. Nominal outer diameter 3.0mm
Insultion Color Blue, Brown and Green/Yellow

Element Assembly

Filler PP, PVC or PE
Wrapping Tape Polyester tape
Inner Sheath Black LSZH, thickness 0.76mm
Armor 0.2mm steel wire interwoven braid,coverage 95%
Outer Sheath LSZH, thickness 1.4mm, nominal outer diameter is 19.0mm
Sheath Color Black

Physical Characteristic:

Min Bending Radius: 360mm
Operating Temperature: -35°C/+90°C

Fire Performance:

Flame Retardant: IEC60332 part 1 & 2
Halogen Free: IEC 60754
Low Smoke Emission: IEC 61034
