1x RG59 +2x1x2x22AWG Data Cable Unarmored LSZH Sheathed Composite Cable

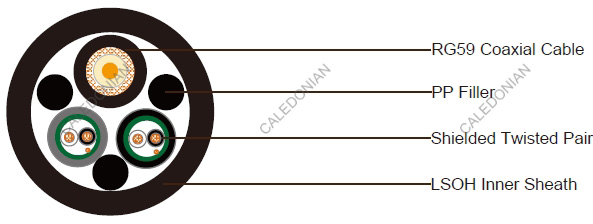

Construction:
1x75Ohm RG59 Coaxial Cable
Conductor | 0.58mm Solid copper conductor |
---|---|
Insulation | Polyethylene. Thickness 1.56mm |
Shield | Braid of bare copper wire. Coverage ≥ 85% |
Sheath | LSZH sheath. Nominal outer diameter 6.2mm |
Sheath Color | Black |
2 Pair 22AWG Data Cable
Conductor | 7/0.254mm Stranded tinned copper |
---|---|
Insulation | PE material. Thickness 0.4mm |
Insulation Color | Black and white |
Shield | Aluminium polyester tape |
Drain Wire | 7/0.2mm stranded tinned copper drain wire |
Sheath | LSZH sheath. Nominal outer diameter 4.8mm. |
Sheath Color | Black |
Element Assembly
Outer Sheath | LSZH, thickness 1.6- 1.8mm, nominal outer diameter is 15.6mm |
---|---|
Sheath Color | Black |
Electrical and Physical Properties @20°C:
Coaxial Cable
Impedance: 75±3Ohm (@1MHz)
Nominal Attenuation: 8.2dB/100m @50MHz
Data Cable
Nominal Conductor Resistance @20°C: 48.4 Ohm/km
Fire Performance:
Flame Propagation: IEC60332
Low Smoke Capacity:IEC61034-1/2
Halogen Free: IEC60754-1/2
