1xRG59+3x3 Power Cable+2x1x2x24AWG Shielded Control Cable Unarmored LSZH Sheathed Composite Cable

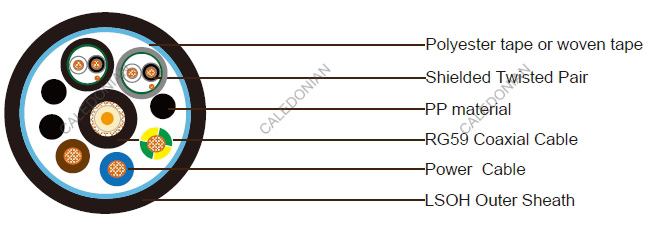

Construction:

Composite Cable

1x75Ohm RG59 Coaxial Cable

Conductor 0.58mm Solid copper conductor
Insulation Polyethylene. Thickness 1.56mm
Shield Braid of bare copper wire. Coverage ≥ 95%
Sheath LSZH sheath. Nominal outer diameter 6.15mm
Sheath Color Black

2x1x2x24 AWG Shielded Control Cable

Conductor 7/0.2mm Stranded tinned copper
Insulation PVC material. Thickness 0.4mm
Insulation Color White and black
Shield Aluminium polyester tape with 24 AWG stranded tinned copper drain wire
Sheath LSZH sheath. Nominal outer diameter 4.8mm. Thickness: 0.76mm
Sheath Color Black and Grey

3x3mm² Power Cable

Conductor 3mm² Stranded tinned copper wire to IEC 60228 Class 2 or BS 6360
Insulation XLPE, Thickness 0.66mm. Outer diameter 3.63mm
Insultion Color Blue, Brown and Green/Yellow

Element Assembly

Filler PP, PVC or PE
Wrapping Tape Polyester tape
Outer Sheath LSZH, thickness 1.2mm, nominal outer diameter is 18.5mm
Sheath Color Black

Physical Characteristic:

Min Bending Radius: 200mm
Operating Temperature: -35°C/+90°CS

Fire Performance:

Flame Retardant: IEC60332 part 1 & 2
