1x RG59 + 7x1x2x22AWG Data Cable + 3x16 AWG Power Cable TCWB FRPVC Sheathed Composite Cable PS80376Rev(1)

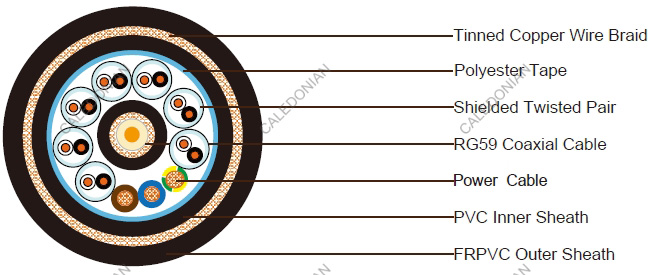

Construction:
1x75Ohm RG59 Coaxial Cable( in the center of the cable core)
Conductor | 0.58mm Solid copper conductor |
---|---|
Insulation | Polyethylene. Thickness 1.56mm |
Shield | Braid of bare copper wire. Coverage ≥ 95% |
Sheath | PVC sheath. Nominal outer diameter 6.2mm |
Sheath Color | Black |
7x1x2x22 AWG Shielded Twisted Pair ( around coaxial cable)
Conductor | 7/0.254mm Stranded tinned copper |
---|---|
Insulation | PE material. Thickness 0.6mm |
Insulation Color | Black and white |
Shield | Aluminium polyester tape |
Drain Wire | 24 AWG stranded tinned copper drain wire |
3x16AWG Power Cable ( around coaxial cable)
Conductor | 19/0.287mm Stranded tinned copper wire |
---|---|
Insulation | XLPE. Thickness 0.7mm |
Element Assembly
Filler | PP material if necessary |
---|---|
Wrapping Tape | Polyester tape |
Shield | Tinned copper wire braid, coverage 80% |
Outer Sheath | UV resisting FRPVC, thickness 1.8mm, norminal outer diameter 25.0mm |
Sheath Color | Black |
Cable Weight | 850kg/km |
Electrical and Physical Properties @20°C:
Coaxial Cable
Impedance: 75±3Ohm (@1MHz)
Max. Attenuation: 7.5dB/100m @50MHz
Power Cable
Electrical Resistance: 6.6Ohm/km
Insulation Resistance: ≥5500 MOhmxkm Data Pairs
Electrical Resistance: 90Ohm/km
Insulation Resistance: ≥1000 MOhmxkm
Element Assembly
Min Bending Radius: 420mm
Operating Temperature: -35°C/+80°C
Fire Performance:
Flame Propagation: IEC60332-1
Low Smoke Capacity:IEC61034-1/2
Halogen Free:IEC60754-1/2
