Composite Cables
1x RG59+3x12AWG Power Cable+3x1x2x24 AWG Shield Pairs SWB LSZH Sheathed Composite Cable

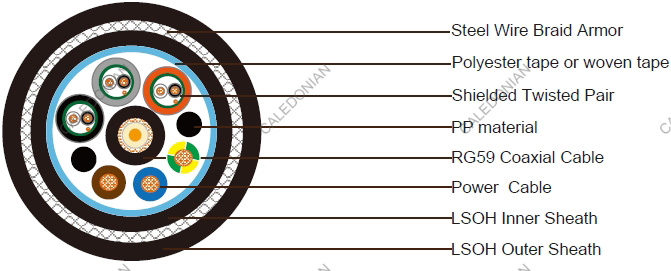

Construction:
1x75Ohm RG59 Coaxial Cable( in the center of the cable core)
| Conductor | 0.58mm Solid copper conductor |
|---|---|
| Insulation | Polyethylene. Thickness 1.56mm |
| Shield | Braid of bare copper wire. Coverage ≥ 92% |
| Sheath | LSZH sheath. Nominal outer diameter 6.2mm |
| Sheath Color | Black |
3x1x2x24/7 AWG Shielded Twisted Pair ( around coaxial cable)
| Conductor | 7/0.2mm Stranded tinned copper |
|---|---|
| Insulation | PVC material. Thickness 0.47mm |
| Insulation Color | Black and white |
| Shield | Aluminium polyester tape |
| Drain Wire | 24 AWG stranded tinned copper drain wire |
| Sheath | LSZH sheath. Nominal outer diameter 4.8mm. Thickness 0.76mm |
| Sheath Color | Black , Grey and Orange |
3x3mm² Power Cable ( around coaxial cable)
| Conductor | 3.0mm² Stranded tinned copper wire |
|---|---|
| Insulation | XLPE. Thickness 0.85mm. Outer diameter 3.65mm |
| Insultion Color | Blue, Brown and Green/Yellow |
Element Assembly
| Filler | PVC or PE material (around coaxial cable) |
|---|---|
| Wrapping Tape | Polyester tape |
| Inner Sheath | Black LSZH, thickness 0.8mm |
| Armor | Steel wire braid,coverage 85% |
| Outer Sheath | LSZH, thickness 1.5mm, nominal outer diameter is 22.0mm |
| Sheath Color | Black |
Electrical and Physical Properties @20°C:
Coaxial Cable
Max. Electrical Resistance: 158Ohm/km
Impedance: 75±3Ohm (@1MHz)
Max. Attenuation: 7.5dB/100m @50MHz
Power Cable
Electrical Resistance: 6.6Ohm/km
Insulation Resistance: ≥5500 MOhmxkm Data Pairs
Electrical Resistance: 90Ohm/km
Insulation Resistance: ≥1000 MOhmxkm
Element Assembly
Min Bending Radius: 420mm
Operating Temperature: -35°C/+80°C
Fire Performance:
Flame Propagation: IEC60332-1 & IEC60332-2
Low Smoke Capacity:IEC61034-1/2
Halogen Free:IEC60754-1/2
