1x RG59 +2x1x2x22AWG Data Cable SWB LSZH Sheathed Composite Cable

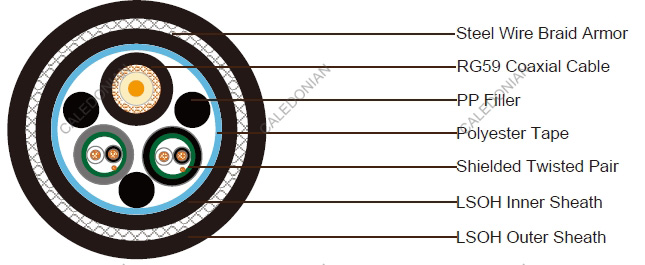

Construction:

Composite Cable

1x75Ohm RG59 Coaxial Cable

Conductor 0.58mm Solid copper conductor
Insulation Polyethylene. Thickness 1.56mm
Shield Braid of bare copper wire. Coverage ≥ 85%
Sheath LSZH sheath. Nominal outer diameter 6.2mm
Sheath Color Black

2 Pair 22AWG Data Cable

Conductor 7/0.254mm Stranded tinned copper
Insulation PVC material. Thickness 0.4mm
Insulation Color Black and white
Shield Aluminium polyester tape
Drain Wire 7/0.2mm stranded tinned copper drain wire
Sheath LSZH sheath. Nominal outer diameter 4.8mm.
Sheath Color Black

Element Assembly

Filler PP material (around coaxial cable)
Wrapping Tape Polyester tape
Inner Sheath Black LSZH, thickness 0.8mm
Armor Steel wire braid,coverage 95%
Outer Sheath LSZH, thickness 1.5mm, nominal outer diameter is 18.5mm
Sheath Color Black

Electrical and Physical Properties @20°C:

Coaxial Cable

Impedance: 75±3Ohm (@1MHz)
Nominal Attenuation: 8.2dB/100m @50MHz

Data Cable

Nominal Conductor Resistance @20°C: 48.4 Ohm/km

Fire Performance:

Flame Propagation: IEC60332
Low Smoke Capacity:IEC61034-1/2
Halogen Free:IEC60754-1/2
