1x RG59 + 2x1x2x24AWG Data Pairs SWB LSZH Sheathed Composite Cable

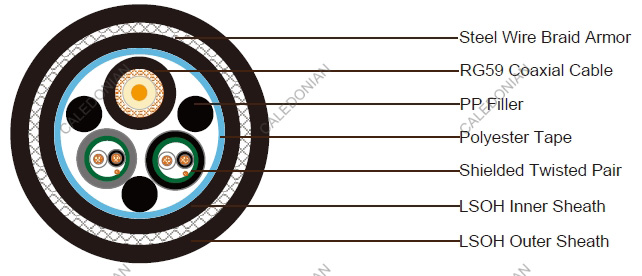

Construction:

Composite Cable

1x75Ohm RG59 Coaxial Cable

Conductor 0.58mm Solid copper conductor
Insulation Polyethylene. Thickness 1.56mm
Shield Braid of bare copper wire. Coverage ≥ 95%
Sheath LSZH sheath. Nominal outer diameter 6.15mm
Sheath Color Black
2 x (1 x 2 x 24AWG) Shielded Twisted Pair
Conductor 7/0.2mm Stranded tinned copper
Insulation PVC material. Thickness 0.6mm
Insulation Color Black and white
Shield Aluminium polyester tape
Drain Wire 24 AWG stranded tinned copper drain wire
Sheath LSZH sheath. Nominal outer diameter 4.8mm. Thickness 0.76mm
Sheath Color Black and Grey

Element Assembly

Filler PE or PP material when necessary
Wrapping Tape Polyester tape or woven tape
Inner Sheath Black LSZH, thickness 0.8mm
Armor Steel wire braid,coverage 85%
Outer Sheath LSZH, thickness 1.5mm, nominal outer diameter is 16.25±2.0mm
Sheath Color Black
Cable Weight 400kg/km

Electrical and Physical Properties @20°C:

Coaxial Cable

Impedance: 75±3Ohm (@1MHz)
Max. Attenuation: 7.5dB/100m @50MHz

Data Pairs

Electrical Resistance: 90Ohm/km Insulation Resistance: ≥1000 MOhmxkm Element Assembly
Min Bending Radius: 420mm
Operating Temperature: -35°C/+80°C

Fire Performance:

Low Smoke Capacity:IEC61034-1/2
Halogen Free:IEC60754-1/2
Flame Propagation: IEC60332
