Composite Cables
1xRG59+3x1.5 Power Cable+2x1x2x24AWG Shielded Control Cable SWB LSZH Sheathed Composite Cable

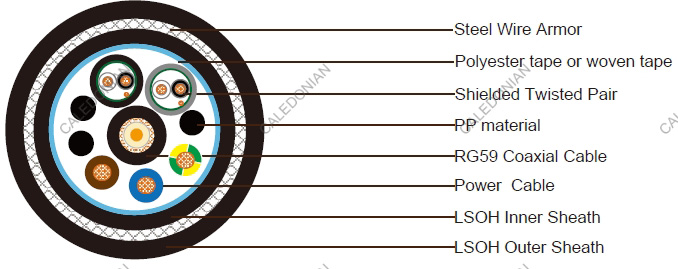

Construction:
1x75Ohm RG59 Coaxial Cable
Conductor |
0.58mm Solid copper conductor |
Insulation |
Polyethylene. Thickness 1.56mm |
Shield |
Braid of bare copper wire. Coverage ≥ 95% |
Sheath |
LSZH sheath. Nominal outer diameter 6.15mm |
Sheath Color |
Black |
2x1x2x24 AWG Shielded Control Cable
Conductor |
7/0.2mm Stranded tinned copper |
Insulation |
PVC material. Thickness 0.4mm |
Insulation Color |
White and black |
Shield |
Aluminium polyester tape with 24 AWG stranded tinned copper drain wire |
Sheath |
LSZH sheath. Nominal outer diameter 4.8mm. Thickness: 0.76mm |
Sheath Color |
Black and Grey |
3x1.5mm² Power Cable
Conductor |
1.5mm² Stranded tinned copper wire to IEC 60228 Class 2 or BS 6360 |
Insulation |
XLPE compound to BS6234. Nominal outer diameter 3.0mm |
Insultion Color |
Blue, Brown and Green/Yellow |
Element Assembly
Filler |
PP, PVC or PE |
Wrapping Tape |
Polyester tape |
Inner Sheath |
Black LSZH, thickness 0.76mm |
Armor |
0.2mm steel wire interwoven braid,coverage 95% |
Outer Sheath |
LSZH, thickness 1.4mm, nominal outer diameter is 22.6mm |
Sheath Color |
Black |
Physical Characteristic:
Min Bending Radius: 360mm
Operating Temperature: -35°C/+90°C
Fire Performance:
Flame Retardant: IEC60332 part 1 & 2
Halogen Free: IEC 60754
Low Smoke Emission: IEC 61034
