Composite Cables
1x RG59+ 3x2.5Power Cable +1x2x24AWG RS485 SWB LSZH Sheathed Composite Cable

Construction:

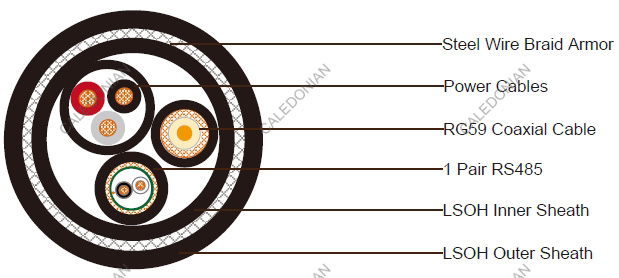

Composite Cable

1x75Ohm RG59 Coaxial Cable

Conductor 0.58mm Solid copper conductor
Insulation Polyethylene. Thickness 1.56mm
Shield Braid of bare copper wire. Coverage ≥ 85%
Sheath PVC sheath. Nominal outer diameter 6.2mm
Sheath Color Black

1 Pair 24AWG RS485

Conductor 7/0.2mm Stranded tinned copper
Insulation PE material. Thickness 0.6mm
Insulation Color Black and white
Shield 1 Aluminium polyester tape with 24 AWG stranded tinned copper drain wire
Shield 2 Tinned copper wire braiding
Sheath PVC sheath. Nominal outer diameter is 6.0mm
Sheath Color Black

3x2.5mm² Power Cable

Conductor 2.5mm² Stranded tinned copper wire
Insulation XLPE. Thickness 0.7mm
Sheath LSZH compound. Nominal diameter is 11.0mm

Element Assembly

Inner Sheath Black LSZH, thickness 1.0mm
Armor Steel wire braid,coverage 85%
Outer Sheath LSZH, thickness 1.8mm, nominal outer diameter is 25.0mm
Sheath Color Black

Electrical and Physical Properties @20°C:

Coaxial Cable

Impedance: 75±3Ohm (@1MHz)
Nominal Attenuation: 8.2dB/100m @50MHz

RS485

Nominal Impedance: 120±10Ω
Nominal Conductor DC Resistance @20°C: 78.7 Ohm/km
Nominal Attenuation: 1MHz 2.3dB/100m

Power Cable

Electrical Resistance: 7.56Ohm/km

Fire Performance:

Flame Propagation: IEC60332-1
Low Smoke Capacity:IEC61034-1/2
Halogen Free:IEC60754-1/2
