Composite Cables
1xRG59+4 Core 62.5 Fiber Cable+3xPower Cable+2x1x2x24AWG Pairs SWB LSZH Sheathed Composite Cable

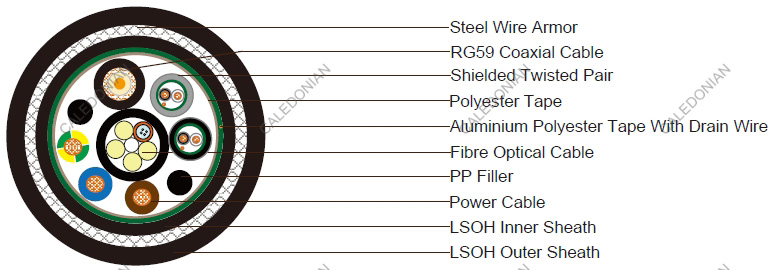

Construction:
1x75Ohm RG59 Coaxial Cable
Conductor |
0.58mm Solid copper conductor |
Insulation |
Polyethylene. Thickness 1.56mm |
Shield |
Braid of bare copper wire. Coverage ≥ 95% |
Sheath |
LSZH SHF1)sheath. Norminal outer diameter 6.2mm |
Sheath Color |
Black |
4 core 62.5/125 Multi Loose Tube Type Fiber Cable
Fibers |
4Cx62.5/125 |
Central Member |
Galvanized steel wire |
Sheath |
Nominal outer diameter 9.6mm |
Sheath Color |
Black |
2x1x2x24 AWG Shielded Twisted Pair ( around coaxial cable)
Conductor |
7/0.2mm Stranded tinned copper |
Insulation |
PVC material. Thickness 0.47mm |
Insulation Color |
Black and white with pair number |
Shield |
Aluminium polyester tape with 0.5mm² stranded tinned copper drain wire. Nominal outer diameter 3.5mm |
Sheath |
LSZH (SHF1) sheath. Norminal outer diameter 5.2mm |
3x2.5mm² Power Cable
Conductor |
2.5mm² Stranded tinned copper wire |
Insulation |
XLPE. Thickness 0.85mm. Outer diameter 3.6mm |
Insultion Color |
Blue, Brown and Green/Yellow |
Element Assembly
Filler |
PP material around cable core |
Wrapping Tape |
Polyester tape |
Shield |
Aluminium polyester tape with 0.5mm² tinned copper drain wire |
Inner Sheath |
Black LSZH (SHF1) , thickness 1.0-1.2mm |
Armor |
Steel wire braid,coverage 85% |
Outer Sheath |
LSZH (SHF1), thickness 1.8-2.0mm. norminal outer diameter 28.5mm |
Sheath Color |
Black |
