Composite Cables

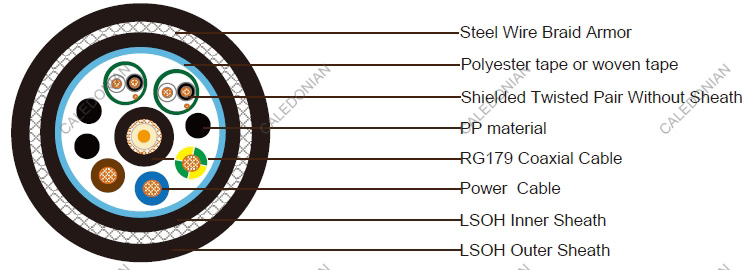

1x RG179 3x1.5mm² Power Cable+2x1x2x24 AWG Data Pairs SWB LSZH Sheathed Composite Cable
Construction:
1x75Ohm RG179 Coaxial Cable
| Conductor | 7/0.1mm Sliver plated copper conductor |
|---|---|
| Insulation | Solid PTFE. Diameter: 1.6mm |
| Shield | Braid of silver plated copper wire. Coverage ≥ 95% |
| Sheath | FEP sheath. Nominal outer diameter 2.5mm |
| Sheath Color | Black |
2x1x2x24AWG Shielded Twisted Pair
| Conductor | 7/0.2mm Stranded tinned copper |
|---|---|
| Insulation | PVC material. Thickness 0.4mm |
| Insulation Color | Black and white with pair number |
| Shield | Aluminium polyester tape with 24 AWG stranded tinned copper drain wire. Nominal outer diameter 3.5mm |
3x1.5mm² Power Cable
| Conductor | 1.5mm² Stranded tinned copper wire |
|---|---|
| Insulation | XLPE. Nominal outer diameter 3.0mm |
| Insultion Color | Blue, Brown and Green/Yellow |
Element Assembly
| Filler | PE or PP material |
|---|---|
| Wrapping Tape | Polyester tape or woven tape |
| Inner Sheath | Black LSZH, thickness 0.8mm. Diameter Over Bedding: 11.2mm±0.8mm |
| Armor | Steel wire braid,coverage 85% |
| Outer Sheath | LSZH, thickness 1.5mm, nominal outer diameter is15.8±2.0mm |
| Sheath Color | Black |
Electrical and Physical Properties @20°C:
Coaxial Cable
Impedance: 75±5Ohm (@1MHz) Nominal capacitance: 63pF/m
Power Cable
Electrical Resistance: 12.1Ohm/km
Insulation Resistance: ≥5500 MOhmxkm
Data Pairs
Electrical Resistance: 90Ohm/km
Insulation Resistance: ≥1000 MOhmxkm
Physical Characteristic:
Min Bending Radius: 420mm Operating Temperature: -35°C/+80°C
Fire Performance:
Low Smoke Capacity:IEC61034-1/2 Halogen Free:IEC60754-1/2 Flame Propagation: IEC60332
