Composite Cables
1x RG11 + 3x2.5 Power Cable + 3x1x2x22AWG Data Pairs SWB PVC Sheathed Composite Cable

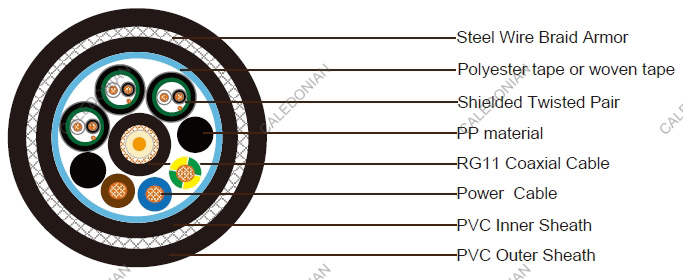

Construction:

Composite Cable

1x75Ohm RG11 Coaxial Cable ( in the center of the cable core)
Conductor 1.63mm Solid bare copper
Insulation Polyethylene.Thickness 7.25mm.
Shield Braidofbare copperwire.Coverage95%
Sheath PVCsheath. Nominalouterdiameteris10.3mm.
Sheath Color Black
3x1x2x22AWG Shielded Twisted Pair ( around coaxial cable)
Conductor 7/0.254mm Strandedtinnedcopper.
Insulation PVCmaterial.Thickness 0.50mm.
Insulation Color White andblack
Individual Shield Aluminum polyester tape
Drain Wire 24AWGstrandedtinnedcopper
Sheath PVCsheath.Thickness0.8mm.
Sheath Color Black withwhitenumber code
3x2.5mm² Power Cable ( around coaxial cable)
Conductor 2.5mm² Strandedtinnedcopper wire.
Insulation XLPE.Outerdiameter3.41mm
Insulation Color Blue,Brown and Green/Yellow

ElementAssembly

Filler PPmaterial(aroundcoaxialcable)
WrappingTape Polyestertape orwoven tape.
Inner Sheath BlackPVC,thickness1.0mm
Armor Steelwire braid, dia. 0.2mm,coverage85%
Outer Sheath PVC,thickness1.8mm,nominalouterdiameter28.3mm
Sheath Color Black
Cable weight 550kg/km

Electrical and Physical Properties @20°C:

Coaxial Cable

Impedance: 75±3Ohm (@1MHz)
Max.Attenuation: 3.3dB/100m@50MHz

Power Cable

Electrical Resistance: 7.41Ohm/km
Insulation Resistance: ≥5500 MOhmxkm

Data Pairs

Electrical Resistance: 49Ohm/km
Insulation Resistance: ≥1000 MOhmxkm
