Composite Cables
1x RG11 + 3x2.5 Power Cable + 4x1x2x24AWG Data Pairs SWA LSZH Sheathed Composite Cable

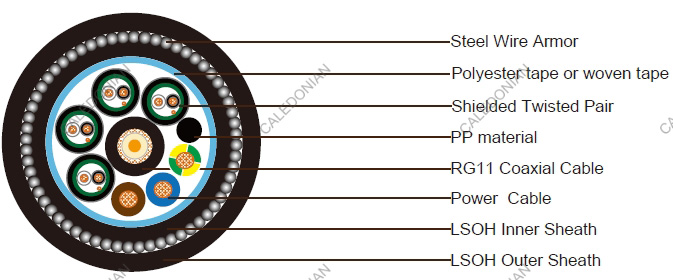

Construction:
1x75Ohm RG11 Coaxial Cable ( in the center of the cable core)
Conductor | 1.63mm Solid bare copper |
---|---|
Insulation | Polyethylene. Diameter 7.25mm. |
Shield | Braid of bare copper wire. Coverage 95% |
Sheath | LSZH sheath. Nominal outer diameter is 10.3mm. |
Sheath Color | Black |
4x1x2x24AWG Shielded Twisted Pair data cable ( around coaxial cable)
Conductor | 7/0.2mm Stranded tinned copper. |
---|---|
Insulation | PVC material. Thickness 0.5mm. |
Insulation Color | White and black |
Individual Shield | Aluminum polyester tape |
Drain Wire | 24 AWG stranded tinned copper |
Sheath | LSZH sheath. Thickness 0.80mm. |
Sheath Color | Black with white number code |
3x2.5mm² Power Cable ( around coaxial cable)
Conductor | 2.5mm² Stranded tinned copper wire. |
---|---|
Insulation | XLPE. Outer diameter 3.41mm |
Insulation Color | Blue, Brown and Green/Yellow |
Element Assembly
Filler | PP material (around coaxial cable) |
---|---|
Wrapping Tape | Polyester tape or woven tape |
Inner Sheath | Black LSZH, thickness 1.1mm |
Armor | Steel wire armor,dia. 1.25mm |
Outer Sheath | LSZH, thickness 1.8mm, nominal outer diameter 26.0±1.0mm |
Sheath Color | Black |
Cable Weight | 1100kg/km |
Electrical and Physical Properties@20°C:
Coaxial Cable
Impedance: 75±3Ohm (@1MHz)
Max. Attenuation: 3.3dB/100m @50MHz
Power Cable
Electrical Resistance: 7.41Ohm/km
Insulation Resistance: ≥5500 MOhmxkm Data Pairs
Electrical Resistance: 90Ohm/km
Insulation Resistance: ≥1000 MOhmxkm
Element Assembly
Conductor DC resistance per km@20°C:
24AWG: 95.8ohm/km 2.5mm²: 7.4ohm/km 1.63mm: 9.26ohm/km
Minimum Bending Radius: 312mm
Temperature Range: -10°C~70°C
Fire Performance:
Flame Propagation: IEC60332-1
Low Smoke Capacity:IEC61034-1/2
Halogen Free:IEC60754-1/2
