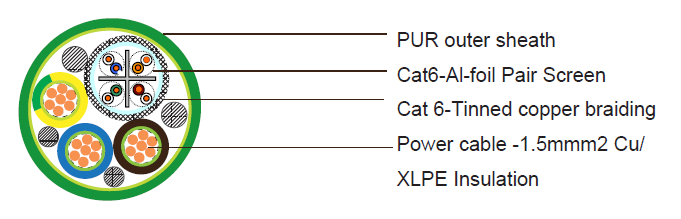

Composite Cable 3G×1.5mm2+ Cat6 S/FTP (4×2×23AWG Cu/PE/Al-foil pair screen/TCWB) / PUR
Construction:
CAT6 4x2x23AWG
| Conductor | Solid copper conductor 23AWG |
|---|---|
| Insulation | Foam PE, nom. diameter 1.43 ± 0.2 mm |
| Twisted pair | 4 twisted pairs as the cable core,individual Al-foil pair screen,coverage>100% |
| Screen | Tinned copper wire braiding, 0.1mm tinned copper diameter |
| Sheath | Without sheath |
3x1.5mm² Power Cable
| Conductor | 1.5mm2 stranded copper wire |
|---|---|
| Strands | 30/0.25mm |
| Insulation | Halogen free XLPE. Nominal thickness 0.6mm, diameter 2.3+/-0.5mm |
| Insulation Color | Blue,Brown,Green/Yellow as the ground core |
Element Assembly
| Filler | PE or PP material |
|---|---|
| Binder | Wrapping tape |
| Outer Sheath | PUR, thickness 1.0mm, nominal outer diameter 12 8+1 5m |
| Sheath Color | Green,approx. weight 215kg/km |
Electrical and Physical Properties @20°C:
1) Cat6 S/FTP Data Cable
Characteristic Impedance:100 +/- 5 ohm
Conductor Resistance: 75 Ohm/km; Loop resistance<：140 Ohm/km
Insulation Resistance: 5G MOhm.km; Operating capacity: 55+/-5 nF/km
Operating voltage: 100V; Test voltage: 1000 V
2) Power Cable
Electrical Resistance: 12.1Ohm/km
Insulation Resistance: ≥5GOhmxkm
Rated voltage: 0.6/1KV; Testing voltage:3500V
Minimum bending radius during installation (mobile state): 8 x Overall Diameter
Minimum bending radius during operation
(fixed state): 4 x Overall Diameter
Operating Temperature: -30℃ ~ +85℃
TRANSMISSION PROPERTIES-TYPICAL
| FREQ MHz |
NEXT dB/100m |
Attenuation dB/100m |
RL dB/100m |
ELFEXT dB/100m |
PSNEXT dB/100m |
PSELFEXT dB/100m |
|---|---|---|---|---|---|---|
| 1.0 | 74.3 | 2.0 | 20.0 | 67.8 | 72.3 | 64.8 |
| 4.0 | 65.3 | 3.8 | 23.0 | 55.8 | 63.3 | 52.8 |
| 8.0 | 60.8 | 5.3 | 24.5 | 49.7 | 58.8 | 46.7 |
| 10.0 | 59.3 | 6.0 | 25.0 | 47.8 | 57.3 | 44.8 |
| 16.0 | 56.2 | 7.6 | 25.0 | 43.7 | 54.2 | 40.7 |
| 20.0 | 54.8 | 8.5 | 25.0 | 41.8 | 52.8 | 38.8 |
| 25.0 | 53.3 | 9.5 | 24.3 | 39.8 | 51.3 | 36.8 |
| 31.3 | 51.9 | 10.7 | 23.6 | 37.9 | 49.9 | 34.9 |
| 62.5 | 47.4 | 15.4 | 21.5 | 31.9 | 45.4 | 28.9 |
| 100.0 | 44.3 | 19.8 | 20.1 | 27.8 | 42.3 | 24.8 |
| 200.0 | 39.8 | 29.0 | 18.0 | 21.8 | 37.8 | 18.8 |
| 250.0 | 38.3 | 32.8 | 17.3 | 19.8 | 36.3 | 16.8 |
| 300.0 | 37.1 | 36.4 | 16.8 | 18.3 | 35.1 | 15.3 |
| 350.0 | 36.1 | 39.8 | 16.3 | 16.9 | 34.1 | 13.9 |
| 400.0 | 35.3 | 43.0 | 15.9 | 15.8 | 33.3 | 12.8 |
| 450.0 | 34.5 | 46.3 | 15.5 | 14.7 | 32.5 | 11.7 |
| 500.0 | 33.8 | 48.9 | 15.2 | 13.8 | 31.8 | 10.8 |
Standards:
| Oil Resistance | IEC 60811-404 (7x24h at 90°C) |
|---|---|
| Flame Retardance | IEC 60332-1 |
| Halogen Free | IEC 60754-1 |
| No Corrosive Gas Emission | IEC 60754-2 |
| Minimum Smoke Emission | IEC 61034-2 |
| Design Standard | IEC 60079-14 |
