Composite Cables
4x2.5 Power Cable + 2 Twisted Pairs + 2 Coax Cable Mud Resistant Composite cable

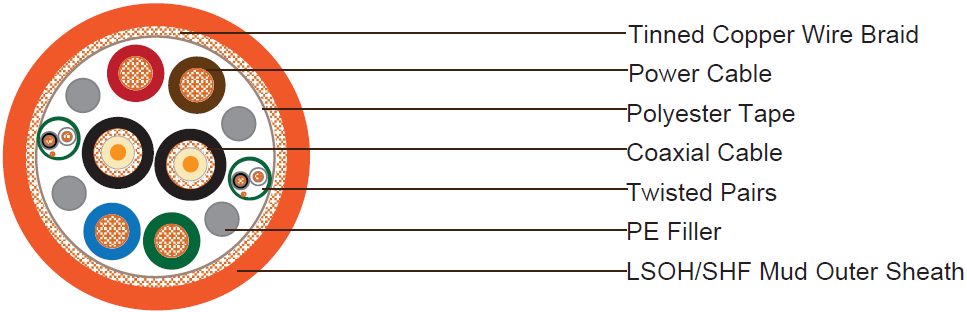

Construction:

Composite Cable

2 Coaxial Cable

Conductor 0.22mmsq, 7/0.20mm stranded bare copper
Insulation Celluar PE, thickness 0.92mm. Norminal outer diameter 2.44mm
Shield 0.12mm bare copper wire braid, coverage ca. 85%
Sheath LSZH, thickness 0.45mm. Norminal outer diameter 3.82mm
Sheath Color Black

4 Power Cable

Conductor 2.5mmsq, 7/0.67mm stranded bare copper
Insulation LSZH, thickness 0.65mm. Norminal outer diameter 3.31mm
Insulation Color Red, blue, green, yellow

2 Twisted Pairs

Conductor 0.22mmsq, 7/0.20mm stranded bare copper
Insulation LSZH, thickness 0.25mm
Insulation Color White/ blue; White/orange
  Shield Aluminum-polyester tape with 0.2mm2 copper drain wire Nominal outer diameter is 2.56mm.

Element Assembly

Filler PE filler, if necessary
Wrapping Tape Polyester tape
Shield 0.16mm tinned copper wire braid, coverage ca. 80%
Outer Sheath LSOH/SHF mud, thickness 0.8mm. Norminal outer diameter 16.7±1.0mm
Sheath Color Orange
Cable Weight 370kg/km

Electrical and Physical Properties @20°C:

Coaxial Cable

Impedance: 75±5Ohm (@5MHz)
Max. Attenuation: 3.3dB/100m (@5MHz)
Capacity:
55pF/m nominal at 1kHz

Power Cable

Conductor Resistance: 7.41Ohm/km
Insulation Resistance: ≥300 MOhmxkm

Data Pairs

Conductor Resistance: 92Ohm/km
 Insulation Resistance: ≥300 MOhmxkm

Element Assembly

Min Bending Radius: 160mm
Operating Temperature: -40°C/+125°C
