Power Cable+RS 485+Belden 9104+Fiber Optic Cable Aluminium Wire Braid Armored Composite Cable

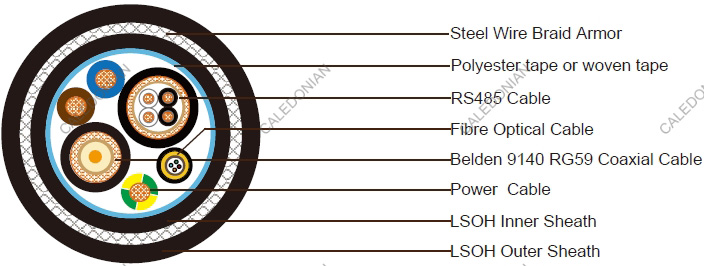

Construction:
3x12AWG Power Cable
Conductor |
12AWG (19/0.455mm stranded copper wire |
Insulation |
XLPE compound. Nominal outer diameter 3.75mm |
Insulation Color |
Blue, Brown and Green/Yellow |
2 Pair 24AWG RS485
Conductor |
24AWG (7/0.2mm stranded copper to IEC228 Class 2 |
Insulation |
PE material. Thickness 0.8mm |
Shield |
Aluminium polyester tape with 24 AWG stranded tinned copper drain wire |
Braid |
Copper wire braiding |
Sheath |
LSZH sheath. Nominal outer diameter is 9.0mm |
Sheath Color |
Black |
Belden 9104 RG59 Coaxial Cable
Conductor |
20AWG bare copper covered steel wire |
Insulation |
Foam high density polyethylene. Norminal outer diameter 3.66mm |
Shield |
Aluminium foil with 100% coverage |
Braid |
Aluminium wire braiding with 67% coverage |
Sheath |
PVC sheath. Norminal outer diameter 6.02mm |
Sheath Color |
Black |
4 Core Central Loose Tube Fiber Optic Cable
Optical Fiber |
Multi-mode cabled fibers meet or exceed the requirements of ITUT G.651 specification |
Loose Tube |
PBT tubes1.80±0.1mm outer diameter, contains 4 fibers.
The tubes are filled with a thixotropic gel to prevent the ingress of water |
Aramid Yarn |
Aramid Yarn is laid over the tube core to serve as peripheral strength member |
Sheath |
LSZH outer Sheathis extruded over the glass yarn. Nominal outer diameter is about 3.40mm |
Sheath Color |
Black |
Element Assembly
Wrapping Tape |
Polyester tape or woven tape |
Inner Jacket |
Black LSZH, thickness 1.20mm |
Armor |
Steel wire braid, coverage 80% |
Sheath |
LSZH, thickness 1.80mm, nominal outer diameter 22.0±2.0mm |
Sheath Color |
Black |
Optical Characteristics
Optical FiberThe Multi-mode fibers meet the ITU G.651 specification, as listed below:
PropertyAttenuation @ 850 nm (dB/km) |
50/125 fibers3.0 |
62.5/125 fibers3.2 |
Attenuation @ 1300 nm (dB/km) |
1.0 |
1.2 |
Added Attenuation with Bending |
0.5 dB (850 and 1300 nm for 100 turns around a 75mm mandrel |
Numerical Aperture |
0.20 0.02 |
0.275 0.015 |
Bandwidth @ 850 nm |
400 MHz*km |
160 MHz*km |
Bandwidth @ 1300 nm |
800 MHz*km |
500 MHz*km |
Core diameter |
50 3 m |
62.5 3 m |
Cladding diameter |
125 2 m |
Core-Claddingoffset |
6% |
Cladding non-circularity |
2% |
Core non-circularity |
6% |
Coating diameter |
245 10 m |
Coating / Cladding offset |
12 m |
Proof Test |
0.69 GN/m2 (100 kpsi) |
The fibers contain no splices.
