Composite Cables DVI Analog Cable(3 Coax, 1 Pair + 5c)

Construction:

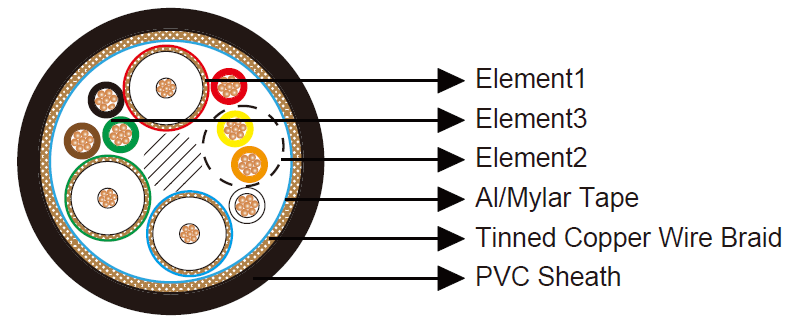

Composite Cable

Element 1: 3 Coaxial(Cu/S.S. cell/TC Braid+ PVC)

Conductor Stranded annealed tinned copper wire, 30AWG(7/38AWG)
Insulation S.S. cell. Thickness 0.505mm. Outer diameter 1.3+0.07mm
Shield Tinned copper braid, 0.1mm, 90% coverage
Sheath PVC, Thickness 0.219mm. Outer diameter 2.15mm
Sheath Color Green/Blue/Red

Element 2: 1PRx28AWG(7/36AWG) Stranded TC/Foam PE+Skin

Conductor Stranded annealed tinned copper wire, 7/36AWG
Insulation High density polyethylene. Thickness 0.15mm. Outer diameter 0.7+0.05mm
Insulation Color Yellow and orange
Twisting The cores shall twisted together in pair, the lay between each twist shall not exceed 100 mm. Outer diameter 1.4mm

Element 3: 5Cx28AWG(7/36AWG) Stranded TC/PE

Conductor Stranded annealed tinned copper wire, 7/36AWG
Insulation High density polyethylene. Thickness 0.15mm. Outer diameter 0.7+0.03mm
Insulation Color Red/Purple/White

Element Assembly

Overall Screen Aluminum/ mylar tape
Braid Shield Braid of tinned copper wire. Coverage ≥ 85%
Outer Sheath LSFROH elastomeric sheath,Thickness 0.87mm. Outer diameter 7.3 +0.2mm, other materail is optional
Sheath Color Black or as per the client's requirement

Physical Properties:

Temperature rating: -25°C to +80°C
Minimum bending radius: 3 x Overall Diameter

Electrical Properties:

Rated voltage: 30V
Max conductor resistance at 20°C: ≤237 Ohm/Km
Min insulation resistance: ≥100M Ohm/m
Spark test: Min. AC 500V/0.15second
Nom. differential impedance: 100+15 Ohm
Mutual capacitance: 46pF/m

Fire Performance in General:

Vertical flame propagation for a single insulated wire or cable
EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2)
Vertical flame spread of vertically mounted bunched wires or cables
EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804
Low Smoke Emission
EN 50268-2; IEC 61034-2; NF C 32-073 ;NF C 20-902; NF F 16 101; VDE 0472 Teil 816
Halogen Free
EN 50267-2-1; IEC 60754-1; NF C 32-074; NF C 20-454; VDE 0472 Teil 815
Low Corrosivity (Acidity & Conductivity)
EN 50267-2-2/3; IEC 60754-2; NF C 32-074; NF C 20-453; VDE 0472 Teil 813
Low Toxicity
EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853
Smoke Index
NF F 63 808; BS6853; NF F 16 101

Fire Performance Relating to Rolling Stock Application:

DIN 5510-2
BS 6853
NF F16 101
NF F 63 808
