2x1x2x24AWG Twisted Pair + 2x1x0.75 Power
Cables + Cat5e F/UTP LSZH Sheathed
Unarmored Composite Cable

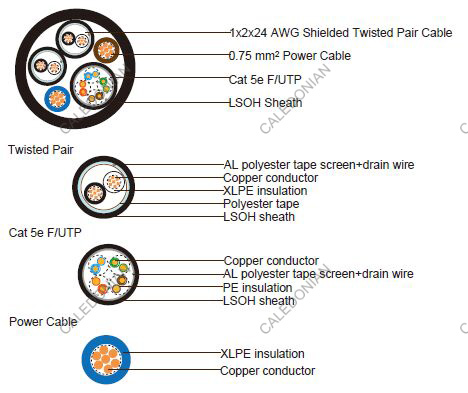

Construction:
2x1x0.75mm2 Power Cable
| Conductor |
Stranded copper wire , class 2 to IEC 60228 |
| Insulation |
XLPE. Nominal thickness 0.7mm. Overall diameter 2.5mm |
| Insulation Color |
Brown and blue. |
2 x1x2x24AWG Twisted Pair
| Conductor |
7/0.2mm stranded copper wire . |
| Insulation |
XLPE. Nominal thickness 0.4mm. |
| Insulation Color |
Black and white. |
| Screen |
Alumminum tape with tinned copper drain wire. |
| Sheath |
LSZH sheath. Nominal thickness 0.76 mm. Overall diameter 4.8mm |
| Sheath Color |
Black. |
Cat 5e F/UTP
| Conductor |
4x2x24 AWG plain copper. |
| Insulation |
PE material. Nominal diameter is 0.91mm. |
| Insulation Color |
White-orange,Orange;White-blue,Blue; |
| |
White-green,Green;White-brown,Brown. |
| Screen |
Alumminum tape with tinned copper drain wire. |
| Sheath |
LSZH sheath. Nominal overall diameter is 6.7mm. |
| Sheath Color |
Black or Grey or Blue. Other colors also available upon request. |
| Applica t i o n s |
IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T. |
| |
IEEE 802.5 16 MB; ISDN; TPDDI; ATM. |
| Standards |
ISO/IEC 11801, ANSI/TIA 568B. |
Element Assembly
| Filler |
PE material. |
| Wrapping Tape |
Polyester tape or woven tape. |
| Outer Sheath |
LSZH. Nominal thickness 1.8mm. Nominal overall diameter is 15.3+/-1mm. |
| Sheath Color |
Black. Other colors also available upon request. |
Power Cable
Max. Electrical Resistance: 26 Ohm/km
Min. Insulation Resistance: 1000 MOhm/km
Operating Temperature: -20°C/+90°C
Voltage rating: 0.6/1KV
Twisted Pair
Max. Electrical Resistance: Ohm/km
Min. Insulation Resistance: 1000 MOhm/km
Operating Temperature: -20°C/+90°C
Voltage rating:
300/500V
Cat5e F/UTP(1-100MHz)
Max. Electrical Resistance: 93.8 Ohm/km
Min. Insulation Resistance: 2000 MOhm/km
Operating Temperature: -20°C/+90°C
Max. Resistance Unbalance:
5%
Max.
Mutual Capacitance: 5.6nF/100m
Max. Capacitance Unbalance: 330pF/100m
Characteristic Impedance :
100 ± 15 (1-100MHz)
Nominal Velocity of Propagation: 69%
Max. Propagation Delay : 536ns/100m@100MHz
Max. Propagation Delay skew : 30ns/100m
