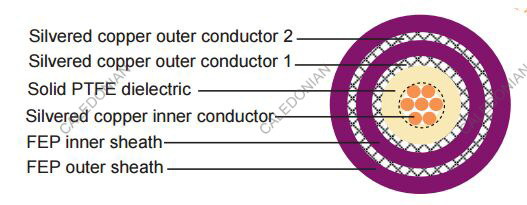

Tri-RG178 Coaxial Cables
Construction
Inner conductor | Silver plated copper covered steel (SCCS) | 7 x 0.10 mm |
---|---|---|
Dielectric | Solid PTFE | Φ0.86 ± 0.10 mm |
Outer conductor(shield1) | Silver plated copper | Φ1.26 ± 0.10 mm |
Inner sheath | FEP | Φ1.80 ± 0.10 mm |
Outer conducto (shield2) | Silver plated copper | Φ2.20 ± 0.10 mm |
Outer sheath | FEP | Φ2.85 ± 0.10 mm |
Electrical & Mechanical Characteristics
Impedance | 50±5 Ohm |
---|---|
Nominal capacitance | 96.5 pF/m |
Velocity of propagation | 70% |
Insulation resistance | -Mohm.Km |
Inner conductor resistance | 800.5 Ohm/Km |
Outer conductor resistance | 27.9 Ohm/Km |
Operatig Voltage(max) | 1 KV |
Test Voltage | |
Operating temperature range | -55°C - +200 °C |
Cable weight (approx.) | 24 Kg/Km |
Screening effectiveness | >60 dB |
Attenuation
Frequency (MHz) | Attenuation (dB/100 m) | Max. Attenuation(dB/100ft) |
---|---|---|
100 | 45.3 | 13.8 |
400 | 91.2 | 27.8 |
1000 | 145.7 | 44.4 |
3000 | 257.2 | 78.4 |
