RG316 Mini-Coax

RG316 Mini-Coax

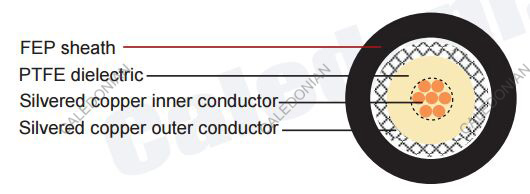

Construction

Inner conductor  Silver plated copper  7 x 0.18 mm
Dielectric  Solid PTFE  Φ1.56 mm
Outer conductor Silver plated copper  0.10 mm
Sheath  FEP  Φ2.45 mm

Electrical & Mechanical Characteristics

Impedance  50±3 Ohm
Nominal capacitance  94 pF/m
Velocity of propagation  70%
Insulation resistance  - Mohm.Km
Inner conductor resistance  - Ohm/Km
Outer conductor resistance  - Ohm/Km
Operating temperature range  -55°C - +200 °C
Cable weight (approx.)  15 kg/km

Attenuation

Frequency (MHz)  Attenuation (dB/100 m)  Max. Attenuation(dB/100ft)
100 27 8.2
200 38 11.6
400 54 16.5
900 82 25
1200 95 29
1500 106 32.3
1800 117 35.7
2000 124 37.8
2500 139 42.4
