75VMTX

75VMTX

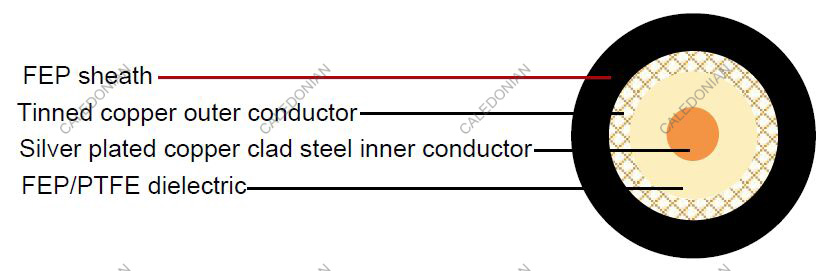

Construction

Inner conductor  Silver plated copper clad stee 0.10 mm
Dielectric  FEP/PTFE Φ0.57 mm
Outer conductor Tinned copper braid Φ0.77 mm
Sheath  FEP  Φ1.22 mm

Electrical & Mechanical Characteristics

Impedance  75±5 Ohm
Nominal capacitance  72.6 pF/m
Velocity of propagation  70%
Insulation resistance  - Mohm.Km
Inner conductor resistance  - Ohm/Km
Outer conductor resistance  - Ohm/Km
Operating temperature range  -55°C - +200 °C
Cable weight (approx.)  3 kg/km

Attenuation

Frequency (MHz)  Attenuation (dB/100 m)  Max. Attenuation(dB/100ft)
10 36 11.0
100 70 21.3
400 135 41.2
1000 220 67.1
2000 320 97.6
3000 390 118.9
