50VMTX

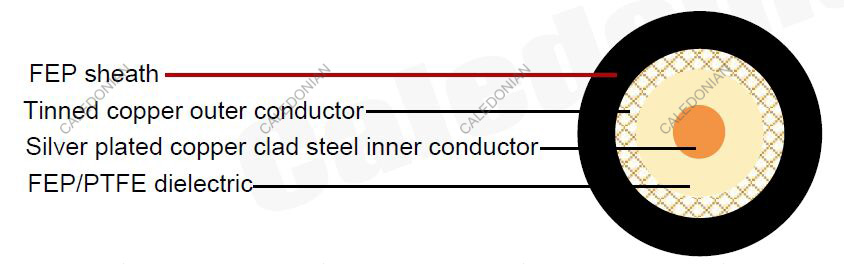

Construction
| Inner conductor | Silver plated copper clad stee | 0.17 mm |
|---|---|---|
| Dielectric | FEP/PTFE | Φ0.52 mm |
| Outer conductor | Tinned copper braid | Φ0.72 mm |
| Sheath | FEP | Φ1.17 mm |
Electrical & Mechanical Characteristics
| Impedance | 50±5 Ohm |
|---|---|
| Nominal capacitance | 94.6 pF/m |
| Velocity of propagation | 70% |
| Insulation resistance | - Mohm.Km |
| Inner conductor resistance | - Ohm/Km |
| Outer conductor resistance | - Ohm/Km |
| Operating temperature range | -55°C - +200 °C |
| Cable weight (approx.) | 3 kg/km |
Attenuation
| Frequency (MHz) | Attenuation (dB/100 m) | Max. Attenuation(dB/100ft) |
|---|---|---|
| 10 | 22 | 6.7 |
| 100 | 54 | 16.5 |
| 400 | 115 | 35.1 |
| 1000 | 220 | 67.1 |
| 2000 | 320 | 97.6 |
| 3000 | 450 | 137.2 |
