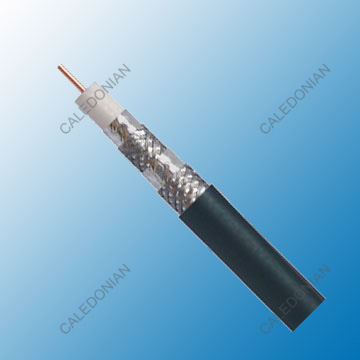

SLS 28810 Coaxial Cables

Construction

Inner conductor  Plain copper  0.6 mm
Dielectric  Gas injected foam PE  Φ2.80 ± 0.10 mm
Outer conductor (shield 1)  Aluminium+polyester+Al tape
Shield coverage  100%
Outer conductor (shield 2)  Tinned copper  128 x 0.10 mm
Shield coverage  90%
Sheath  PVC  Φ4.70 ± 0.10 mm

Electrical & Mechanical Characteristics

Impedance  75±5 Ohm
Nominal capacitance  56 pF/m
Velocity of propagation  80%
Insulation resistance  >5000 Mohm.Km
Inner conductor resistance  62 Ohm/Km
Outer conductor resistance  17.5 Ohm/Km
Operating temperature range  -25 °C - +80 °C
Copper weight  12.2 Kg/Km
Cable weight (approx.)  30.5 Kg/Km
Screening effectiveness  >85 dB

Attenuation

Frequency(MHz)  Attenuation (dB/100 m)  Attenuation (dB/100 ft)
50 7.3 2.23
230 14.7 4.48
470 21.4 6.52
860 30 9.15
1000 32.9 10.03
1350 38.2 11.65
1500 41.1 12.53
1750 44.1 13.45
2150 49.7 15.15
2400 53.6 16.34

Return Loss

30-470 MHz >32dB
470-860 MHz  >27dB
860-2400 MHz >21dB
