 ACCL400 Coaxial Cables

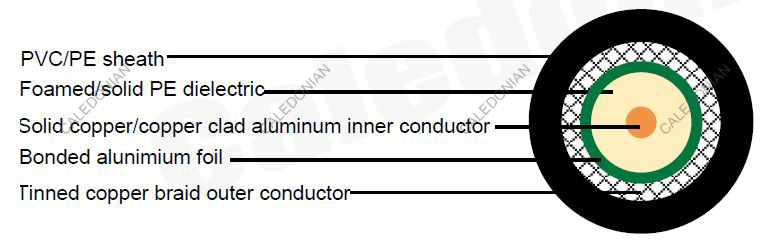

Constructioncs

Inner conductor  Solid copper /copper clad aluminum Φ2.74 mm
Dielectric  Foam /Solid PE  Φ7.24 mm
Shield  Bonded aluminium foil  Φ7.39 mm
Outer conductor  Tinned copper braid  Φ8.13 mm
Sheath  PVC/PE  Φ10.29 mm

Electrical & Mechanical Characteristics

Impedance  50±3 Ohm
Nominal capacitance  101.1 pF/m
Velocity of propagation  85%
Insulation resistance  >5000 Mohm.Km
Inner conductor resistance 2.92 Ohm/km
Outer conductor resistance  5.41 Ohm/Km
Operating temperature range  -40°C - +85 °C
Min.bending radius  51 mm

Attenuation

Frequency(MHz)  Attenuation (dB/100 m)  Max. Attenuation(dB/100ft)
30 2.2 0.7
50 2.9 0.9
150 5 1.5
220 6.1 1.9
450 8.9 2.7
900 12.8 3.9
1500 16.8 5.1
1800 18.6 5.7
2000 19.6 6
2500 22.2 6.8
3000 24.8 7.6
5800 35.5 10.8
