Unscreened TFN Cable
Applications
Unscreened TFN Cables are use in class 1, Division 2 Hazardous locations, may be installed in trays, wire ways, ducts, conduit and aerially when properly supported by a messenger. They are approved for direct burial, wet or dry locations and outdoors in cable trays where a sunlight resistant rating is required.
Standards
ICEA S-73-532; UL 1277; UL 66

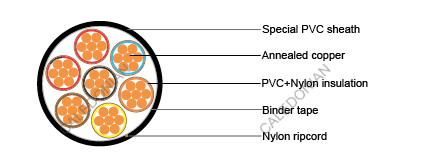

Construction
Conductor: Bare, annealed copper conforming to ASTM B3 and B8
Insulation: Flame-retardant PVC/Nylon type TFN per UL 66
Color coded per Method #1-E2 per ICEA S-73-532
Binder tape
Ripcord: Nylon
Jacket: Special PVC, flame retardant, UL listed sunlight and moisture resistant, meeting the
requirements of UL 1277. Color: Black
Chemical resistance: Aliphatic and aromatic hydrocarbon resistance
16 AWG, 600V, Rated 90°C
No. of Cores | PVC Thickness | Nylon Thickness | Jacket Thickness | Nom. O.D. | Approx. Weight | Ampacity |
---|---|---|---|---|---|---|
mm | mm | mm | mm | kg/km | amps | |
2 Flat | 0.38 | 0.10 | 1.14 | 4.83 x 7.37 | 67 | 8.0 |
3 | 0.38 | 0.10 | 1.14 | 7.77 | 86 | 8.0 |
4 | 0.38 | 0.10 | 1.14 | 8.38 | 106 | 6.4 |
5 | 0.38 | 0.10 | 1.14 | 9.14 | 128 | 6.4 |
6 | 0.38 | 0.10 | 1.14 | 9.91 | 149 | 6.4 |
7 | 0.38 | 0.10 | 1.14 | 9.91 | 164 | 5.6 |
8 | 0.38 | 0.10 | 1.14 | 10.80 | 190 | 5.6 |
9 | 0.38 | 0.10 | 1.14 | 11.48 | 210 | 5.6 |
10 | 0.38 | 0.10 | 1.14 | 12.19 | 234 | 4.0 |
11 | 0.38 | 0.10 | 1.14 | 12.34 | 246 | 4.0 |
12 | 0.38 | 0.10 | 1.14 | 12.83 | 266 | 4.0 |
13 | 0.38 | 0.10 | 1.14 | 12.95 | 305 | 4.0 |
14 | 0.38 | 0.10 | 1.52 | 14.12 | 326 | 4.0 |
15 | 0.38 | 0.10 | 1.52 | 14.48 | 345 | 4.0 |
16 | 0.38 | 0.10 | 1.52 | 15.09 | 357 | 4.0 |
19 | 0.38 | 0.10 | 1.52 | 15.49 | 421 | 4.0 |
20 | 0.38 | 0.10 | 1.52 | 16.26 | 446 | 4.0 |
25 | 0.38 | 0.10 | 1.52 | 18.16 | 546 | 3.6 |
30 | 0.38 | 0.10 | 1.52 | 19.43 | 640 | 3.6 |
37 | 0.38 | 0.10 | 2.03 | 21.99 | 815 | 3.2 |
40 | 0.38 | 0.10 | 2.03 | 22.68 | 869 | 3.2 |
45 | 0.38 | 0.10 | 2.03 | 23.95 | 966 | 2.8 |
50 | 0.38 | 0.10 | 2.03 | 24.88 | 1025 | 2.8 |
18 AWG, 600V, Rated 90°C
No. of Cores | PVC Thickness | Nylon Thickness | Jacket Thickness | Nom. O.D. | Approx. Weight | Ampacity |
---|---|---|---|---|---|---|
mm | mm | mm | mm | kg/km | amps | |
2 Flat | 0.38 | 0.10 | 1.14 | 4.57 x 6.86 | 52 | 6.0 |
3 | 0.38 | 0.10 | 1.14 | 7.31 | 67 | 6.0 |
4 | 0.38 | 0.10 | 1.14 | 7.91 | 80 | 4.8 |
5 | 0.38 | 0.10 | 1.14 | 8.56 | 98 | 4.8 |
6 | 0.38 | 0.10 | 1.14 | 9.25 | 113 | 4.8 |
7 | 0.38 | 0.10 | 1.14 | 9.25 | 122 | 4.2 |
8 | 0.38 | 0.10 | 1.14 | 9.95 | 137 | 4.2 |
9 | 0.38 | 0.10 | 1.14 | 10.69 | 160 | 4.2 |
10 | 0.38 | 0.10 | 1.14 | 11.37 | 175 | 3.0 |
11 | 0.38 | 0.10 | 1.14 | 11.53 | 182 | 3.0 |
12 | 0.38 | 0.10 | 1.14 | 11.87 | 195 | 3.0 |
13 | 0.38 | 0.10 | 1.14 | 12.08 | 207 | 3.0 |
14 | 0.38 | 0.10 | 1.14 | 12.47 | 220 | 3.0 |
15 | 0.38 | 0.10 | 1.14 | 12.79 | 274 | 3.0 |
19 | 0.38 | 0.10 | 1.52 | 14.58 | 312 | 3.0 |
20 | 0.38 | 0.10 | 1.52 | 14.99 | 323 | 3.0 |
25 | 0.38 | 0.10 | 1.52 | 16.71 | 405 | 2.7 |
30 | 0.38 | 0.10 | 1.52 | 17.80 | 458 | 2.7 |
37 | 0.38 | 0.10 | 1.52 | 19.15 | 564 | 2.4 |
40 | 0.38 | 0.10 | 1.52 | 19.86 | 591 | 2.4 |
45 | 0.38 | 0.10 | 1.52 | 22.02 | 658 | 2.1 |
50 | 0.38 | 0.10 | 2.03 | 22.80 | 768 | 2.1 |
