Screened TFN Cable
Applications
Screened TFN Cable are use in class 1, Division 2 Hazardous locations, may be installed in trays, wire ways, ducts, conduit and aerially when properly supported by a messenger. They are approved for direct burial, wet or dry locations and outdoors in cable trays where a sunlight resistant rating is required.Standards

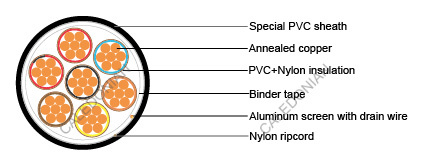

ICEA S-73-532; UL 1277; UL 66Construction
Conductor: Bare, annealed copper conforming to ASTM B3 and B8Insulation: Flame-retardant PVC/Nylon type TFN per UL 66
Color coded per Method #1-E2 per ICEA S-73-532
Binder tape
Screen: Aluminum tape
Drain Wire: 18 AWG (7w) tinned copper for 16 AWG conductor
20 AWG (7w) tinned copper for 18 AWG conductor
Ripcord: Nylon
Jacket: Special PVC, flame retardant, UL listed sunlight and moisture resistant, meeting the
requirements of UL 1277. Color: Black
Chemical resistance: Aliphatic and aromatic hydrocarbon resistance
16 AWG, 600V, Rated 90°C
No. of Cores | PVC Thickness | Nylon Thickness | Jacket Thickness | Nom. O.D. | Approx. Weight | Ampacity |
---|---|---|---|---|---|---|
mm | mm | mm | mm | kg/km | amps | |
2 | 0.38 | 0.10 | 1.14 | 7.57 | 76 | 8.0 |
3 | 0.38 | 0.10 | 1.14 | 7.98 | 100 | 8.0 |
4 | 0.38 | 0.10 | 1.14 | 8.61 | 119 | 6.4 |
5 | 0.38 | 0.10 | 1.14 | 9.35 | 143 | 6.4 |
6 | 0.38 | 0.10 | 1.14 | 10.11 | 165 | 6.4 |
7 | 0.38 | 0.10 | 1.14 | 10.11 | 179 | 5.6 |
8 | 0.38 | 0.10 | 1.14 | 11.05 | 202 | 5.6 |
9 | 0.38 | 0.10 | 1.14 | 11.86 | 222 | 5.6 |
10 | 0.38 | 0.10 | 1.14 | 12.62 | 240 | 4.0 |
11 | 0.38 | 0.10 | 1.14 | 12.80 | 257 | 4.0 |
12 | 0.38 | 0.10 | 1.52 | 13.94 | 278 | 4.0 |
13 | 0.38 | 0.10 | 1.52 | 14.17 | 317 | 4.0 |
14 | 0.38 | 0.10 | 1.52 | 14.61 | 341 | 4.0 |
15 | 0.38 | 0.10 | 1.52 | 14.96 | 360 | 4.0 |
19 | 0.38 | 0.10 | 1.52 | 16.10 | 448 | 4.0 |
20 | 0.38 | 0.10 | 1.52 | 16.56 | 461 | 4.0 |
25 | 0.38 | 0.10 | 1.52 | 18.47 | 561 | 3.6 |
30 | 0.38 | 0.10 | 1.52 | 19.69 | 655 | 3.6 |
37 | 0.38 | 0.10 | 2.03 | 22.20 | 845 | 3.2 |
40 | 0.38 | 0.10 | 2.03 | 22.99 | 899 | 3.2 |
45 | 0.38 | 0.10 | 2.03 | 24.26 | 995 | 2.8 |
50 | 0.38 | 0.10 | 2.03 | 25.12 | 1106 | 2.8 |
18 AWG, 600V, Rated 90°C
No. of Cores | PVC Thickness | Nylon Thickness | Jacket Thickness | Nom. O.D. | Approx. Weight | Ampacity |
---|---|---|---|---|---|---|
mm | mm | mm | mm | kg/km | amps | |
2 | 0.38 | 0.10 | 1.14 | 7.11 | 57 | 6.0 |
3 | 0.38 | 0.10 | 1.14 | 7.47 | 73 | 6.0 |
4 | 0.38 | 0.10 | 1.14 | 8.06 | 86 | 4.8 |
5 | 0.38 | 0.10 | 1.14 | 8.71 | 108 | 4.8 |
6 | 0.38 | 0.10 | 1.14 | 9.40 | 122 | 4.8 |
7 | 0.38 | 0.10 | 1.14 | 9.40 | 136 | 4.2 |
8 | 0.38 | 0.10 | 1.14 | 10.26 | 145 | 4.2 |
9 | 0.38 | 0.10 | 1.14 | 10.99 | 167 | 4.2 |
10 | 0.38 | 0.10 | 1.14 | 11.68 | 188 | 3.0 |
11 | 0.38 | 0.10 | 1.14 | 11.84 | 193 | 3.0 |
12 | 0.38 | 0.10 | 1.14 | 12.18 | 202 | 3.0 |
13 | 0.38 | 0.10 | 1.14 | 12.39 | 214 | 3.0 |
14 | 0.38 | 0.10 | 1.14 | 12.77 | 228 | 3.0 |
15 | 0.38 | 0.10 | 1.14 | 13.09 | 245 | 3.0 |
19 | 0.38 | 0.10 | 1.52 | 14.88 | 320 | 3.0 |
20 | 0.38 | 0.10 | 1.52 | 15.30 | 326 | 3.0 |
25 | 0.38 | 0.10 | 1.52 | 17.01 | 416 | 2.7 |
30 | 0.38 | 0.10 | 1.52 | 18.11 | 473 | 2.7 |
37 | 0.38 | 0.10 | 1.52 | 19.46 | 580 | 2.4 |
40 | 0.38 | 0.10 | 1.52 | 20.17 | 606 | 2.4 |
45 | 0.38 | 0.10 | 2.03 | 22.32 | 673 | 2.1 |
50 | 0.38 | 0.10 | 2.03 | 23.10 | 783 | 2.1 |
