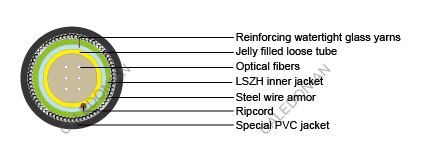

Steel Wire Armored Optical Fiber Cable
Applications
Optical Fiber Cable for oil industry are suitable for underground use in industries. The special PVC sheath resists aliphatic and aromatic hydrocarbon and U.V.Standards
IEC 794-1-E1; IEC 794-1-E3; IEC 794-1-E4; IEC 794-1-F1; IEC 60332-3-22 Cat.A
Properties
Operating temperature: -20~60°C
Chemical resistance: Aliphatic and aromatic hydrocarbon resistance
| No. of Optical Fiber | Fiber Optic Type | No. of Tube | Diameter over Inner Sheath (mm) | Diameter over Armor (mm) | Min. O.D. (mm) | Max. O.D. (mm) | Approx. Weight (kg/km) |
|---|---|---|---|---|---|---|---|
| 4 | 50/125 | 1 | 6.6 | 8.4 | 10.8 | 12 | 235 |
| 4 | 62.5/125 | 1 | 6.6 | 8.4 | 10.8 | 12 | 235 |
| 6 | 50/125 | 1 | 6.6 | 8.4 | 10.8 | 12 | 235 |
| 6 | 62.5/125 | 1 | 6.6 | 8.4 | 10.8 | 12 | 235 |
| 8 | 50/125 | 1 | 6.6 | 8.4 | 10.8 | 12 | 235 |
| 8 | 62.5/125 | 1 | 6.6 | 8.4 | 10.8 | 12 | 235 |
| 8 | 9/125 | 1 | 6.6 | 8.4 | 10.8 | 12 | 235 |
| 12 | 50/125 | 1 | 6.6 | 8.4 | 10.8 | 12 | 235 |
| 12 | 62.5/125 | 1 | 6.6 | 8.4 | 10.8 | 12 | 235 |
| 12 | 9/125 | 1 | 6.6 | 8.4 | 10.8 | 12 | 235 |
| 16 | 62.5/125 | 1 | 6.6 | 8.4 | 10.8 | 12 | 235 |
| 24 | 50/125 | 1 | 6.6 | 8.4 | 10.8 | 12 | 235 |
| 24 | 62.5/125 | 1 | 6.6 | 8.4 | 10.8 | 12 | 235 |
