Individual & Overall Screened & Armored Thermocouple Cable
Applications
Armored Thermocouple Cable for oil industry are used with thermocouples for temperature measurements where hydrocarbon may be present.Standards

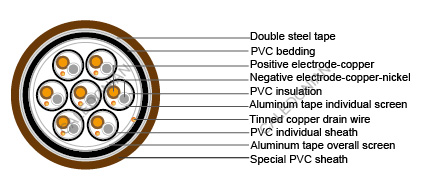

IEC 60584-3; NF C 42-324Construction
Conductor: Metal according to thermocouple typeInsulation: PVC
Individual screen: Aluminum/polyester tape with tinned copper drain wire
Individual sheath: PVC
Overall screen: Aluminum/polyester tape with tinned copper drain wire
Inner sheath: PVC
Armor: Double steel tape
Sheath: Special PVC. Color depends on thermocouple type
Properties
Flame retardance: NFC 32070 C2, IEC 60332-1-2Operating voltage: 250V
Operating temperature: -20~60°C
Max. conductor temperature in service: 70°C
Chemical resistance: Aliphatic and aromatic hydrocarbon resistance
Conductor Size (mm sq) | No, of Pairs | Min. O.D. (mm) | Max. O.D. (mm) | Approx. Weight (kg/km) |
---|---|---|---|---|
0.5 solid | 3 | 14.6 | 16.8 | 370 |
0.5 solid | 7 | 19.1 | 22.0 | 590 |
0.5 solid | 12 | 23.9 | 27.5 | 865 |
0.5 solid | 19 | 28.8 | 33.0 | 1225 |
0.5 solid | 27 | 33.2 | 38.2 | 1700 |
