600V/1000V XLPE Insulated Unarmored Cable to IEC 60502-1
Applications
IEC 60502-1 Standard Cables for Oil Industry are used for electricity supply in low voltage installation system. They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where chemicals may be present.Construction

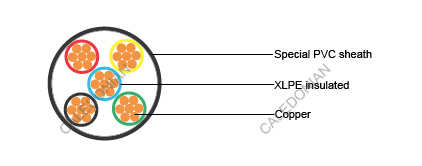

Conductor: Solid or stranded copperInsulation: XLPE
Core identification
1 Core: Red or Black
2 Cores: Red, Black
3 Cores: Red, Yellow, Blue
4 Cores: Red, Yellow, Blue, Black
5 Cores: Red, Yellow, Blue, Black, Green
Above 5 cores: Black core printed with white numbers
Sheath: Special PVC. Color: black
Properties
Rated voltage: 600V/1000VFire retardance: IEC 60332-3-22
Operating temperature: -20~60°C
Max. conductor operating temperature: 90°C
Chemical resistance: Aliphatic and aromatic hydrocarbon resistance
For detailed data for this cable, welcome to go to the DOWNLOAD area for document download or online viewing.
