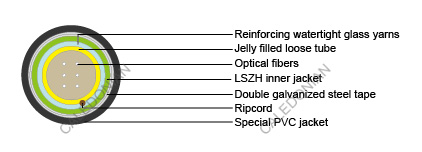

Double Galvanized Steel Tape Armored Optical Fiber Cable
Applications
Double Galvanized Steel Tape Armored Optical Fiber Cable(Cables for industry) are suitable for underground use in industries. The special PVC sheath resists aliphaticand aromatic hydrocarbon and U.V.
Standards
IEC 794-1-E1; IEC 794-1-E3; IEC 794-1-E4; IEC 794-1-F1; IEC 60332-3-22 Cat.AProperties
Operating temperature: -20~60°C
Chemical resistance: Aliphatic and aromatic hydrocarbon resistance
| No. of Optical Fiber | Fiber Optic Type | No. of Tube | Diameter over Inner Sheath (mm) | Diameter over Armor (mm) | Min. O.D. (mm) | Max. O.D. (mm) | Approx. Weight (kg/km) |
|---|---|---|---|---|---|---|---|
| 4 | 50/125 | 1 | 6.6 | 7.7 | 9.9 | 11.2 | 178 |
| 4 | 62.5/125 | 1 | 6.6 | 7.7 | 9.9 | 11.2 | 178 |
| 6 | 50/125 | 1 | 6.6 | 7.7 | 9.9 | 11.2 | 178 |
| 6 | 62.5/125 | 1 | 6.6 | 7.7 | 9.9 | 11.2 | 178 |
| 8 | 50/125 | 1 | 6.6 | 7.7 | 9.9 | 11.2 | 178 |
| 8 | 62.5/125 | 1 | 6.6 | 7.7 | 9.9 | 11.2 | 178 |
| 8 | 9/125 | 1 | 6.6 | 7.7 | 9.9 | 11.2 | 178 |
| 12 | 50/125 | 1 | 6.6 | 7.7 | 9.9 | 11.2 | 178 |
| 12 | 62.5/125 | 1 | 6.6 | 7.7 | 9.9 | 11.2 | 178 |
| 12 | 9/125 | 1 | 6.6 | 7.7 | 9.9 | 11.2 | 178 |
| 16 | 62.5/125 | 1 | 6.6 | 7.7 | 9.9 | 11.2 | 178 |
| 24 | 50/125 | 1 | 6.6 | 7.7 | 9.9 | 11.2 | 178 |
| 24 | 62.5/125 | 1 | 6.6 | 7.7 | 9.9 | 11.2 | 178 |
