Overall Screened & Armored Thermocouple Cable

Applications

Overall Screened & Armored Thermocouple Cable(Cables for industry) are used with thermocouples for temperature measurements where hydrocarbon may be present.

Standards

IEC 60584-3; NF C 42-324

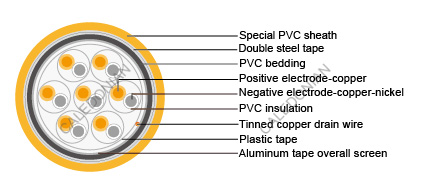

Construction

Conductor: Metal according to thermocouple type
Insulation: PVC
Overall screen: Aluminum/polyester tape with tinned copper drain wire
Inner sheath: PVC
Armour: Double steel tape
Sheath: Special PVC. Color depends on thermocouple type

Properties

Flame retardance: NFC 32070 C2, IEC 60332-1-2
Operating voltage: 250V
Operating temperature: -20~60°C
Max. conductor temperature in service: 70°C
Chemical resistance: Aliphatic and aromatic hydrocarbon resistance
Conductor Size No, of Pairs Min. O.D. (mm) Max. O.D. (mm) Approx. Weight (kg/km)
 mm sq Solid or Stranding
1 14 x 0.30 mm 1 9.8 11.3 180
1.34 1 x 1.30 mm 1 9.8 11.3 185
0.5 1 x 0.8 mm 3 11.4 13.1 225
0.5 1 x 0.8 mm 7 14.1 16.2 330
0.5 1 x 0.8 mm 12 17.3 19.8 470
0.5 1 x 0.8 mm 19 20.6 23.7 650
0.5 1 x 0.8 mm 27 23.2 26.6 830
