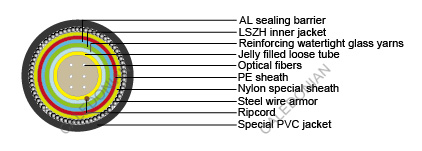

Steel Wire Armored Optical Fiber Cable with Special Sheath
Applications
Steel Wire Armored Optical Fiber Cable with Special Sheath(Cables for industry) are suitable for underground use in all refineries while bringing an environmental friendly solution. The special design can resists aliphatic and aromatic hydrocarbon and U.V.
Standards
IEC 794-1-E1; IEC 794-1-E3; IEC 794-1-E4; IEC 794-1-F1; IEC 60332-3-22 Cat.A
Properties
Operating temperature: -20~60°C
Chemical resistance: Aliphatic and aromatic hydrocarbon resistance
| No. of Optical Fiber | Fiber Optic Type | No. of Tube | Diameter over Inner Sheath (mm) | Diameter over Sheath (mm) | Diameter over Armor (mm) | Min. O.D. (mm) | Max. O.D. (mm) | Approx. Weight (kg/km) |
|---|---|---|---|---|---|---|---|---|
| 4 | 50/125 | 1 | 6.6 | 10.23 | 12.03 | 14.5 | 16.2 | 397 |
| 4 | 62.5/125 | 1 | 6.6 | 10.23 | 12.03 | 14.5 | 16.2 | 397 |
| 6 | 50/125 | 1 | 6.6 | 10.23 | 12.03 | 14.5 | 16.2 | 397 |
| 6 | 62.5/125 | 1 | 6.6 | 10.23 | 12.03 | 14.5 | 16.2 | 397 |
| 8 | 50/125 | 1 | 6.6 | 10.23 | 12.03 | 14.5 | 16.2 | 397 |
| 8 | 62.5/125 | 1 | 6.6 | 10.23 | 12.03 | 14.5 | 16.2 | 397 |
| 8 | 9/125 | 1 | 6.6 | 10.23 | 12.03 | 14.5 | 16.2 | 397 |
| 12 | 50/125 | 1 | 6.6 | 10.23 | 12.03 | 14.5 | 16.2 | 397 |
| 12 | 62.5/125 | 1 | 6.6 | 10.23 | 12.03 | 14.5 | 16.2 | 397 |
| 12 | 9/125 | 1 | 6.6 | 10.23 | 12.03 | 14.5 | 16.2 | 397 |
| 16 | 62.5/125 | 1 | 6.6 | 10.23 | 12.03 | 14.5 | 16.2 | 397 |
| 24 | 50/125 | 1 | 6.6 | 10.23 | 12.03 | 14.5 | 16.2 | 397 |
| 24 | 62.5/125 | 1 | 6.6 | 10.23 | 12.03 | 14.5 | 16.2 | 397 |
