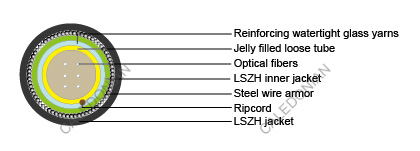

Steel Wire Armored Optical Fiber Cable with LSZH Sheath
Applications
All materials are halogen free. This ensures that non corrosive and low toxic gases are emitted in case of fire. Steel Wire Armored Optical Fiber Cable with LSZH Sheath(Cables for industry) is recommended for use inside buildings where require mechanical protection.Standards
IEC 794-1-E1; IEC 794-1-E3; IEC 794-1-E4; IEC 794-1-F1; IEC 60332-3-22 Cat.AProperties
Operating temperature: -20~60°C
Chemical resistance: Aliphatic and aromatic hydrocarbon resistance
| No. of Optical Fiber | Fiber Optic Type | No. of Tube | Diameter over Inner Sheath (mm) | Diameter over Armor (mm) | Min. O.D. (mm) | Max. O.D. (mm) | Approx. Weight (kg/km) |
|---|---|---|---|---|---|---|---|
| 4 | 50/125 | 1 | 6.6 | 8.4 | 10.8 | 12 | 232 |
| 4 | 62.5/125 | 1 | 6.6 | 8.4 | 10.8 | 12 | 232 |
| 6 | 50/125 | 1 | 6.6 | 8.4 | 10.8 | 12 | 232 |
| 6 | 62.5/125 | 1 | 6.6 | 8.4 | 10.8 | 12 | 232 |
| 8 | 50/125 | 1 | 6.6 | 8.4 | 10.8 | 12 | 232 |
| 8 | 62.5/125 | 1 | 6.6 | 8.4 | 10.8 | 12 | 232 |
| 8 | 9/125 | 1 | 6.6 | 8.4 | 10.8 | 12 | 232 |
| 12 | 50/125 | 1 | 6.6 | 8.4 | 10.8 | 12 | 232 |
| 12 | 62.5/125 | 1 | 6.6 | 8.4 | 10.8 | 12 | 232 |
| 12 | 9/125 | 1 | 6.6 | 8.4 | 10.8 | 12 | 232 |
| 16 | 62.5/125 | 1 | 6.6 | 8.4 | 10.8 | 12 | 232 |
| 24 | 50/125 | 1 | 6.6 | 8.4 | 10.8 | 12 | 232 |
| 24 | 62.5/125 | 1 | 6.6 | 8.4 | 10.8 | 12 | 232 |
