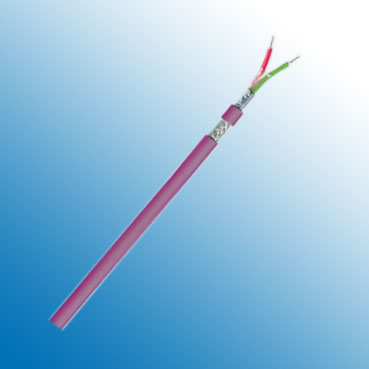

Profibus L2 Indoor
Application:
This system cable is used to interconnect L2-BUS components. This cable is an economical solution for the cell and field area. For the information exchange between different automation systems as well as for communication with the connected decentralized field units, serial fieldbus systems are used. The types mentioned here are suitable for indoor laying and are equipped with a special PVC jacket.
Construction:
| Type/Area of Application |
Fixed Installation, Indoor |
| Cable Construction |
1x2x0.64 mm |
| Inner Conductor Diameter |
Copper, bare (AWG 22/1) |
| Conductor Insulation |
Foam-skin-PE |
| Conductor Colors |
Red, green |
| Stranding Element |
2 conductors + 2 fillers stranded together |
| Shielding 1 |
Polyester foil over stranded bundle |
| Shielding 2 |
Polyester foil, aluminum-lined |
| Total Shielding |
Cu braid, tinned |
| Outer Jacket Material |
PVC |
| Outer Diameter |
7.8 mm ± 0.4 mm |
| Outer Jacket Color |
Grey/Violet |
Electrical Data:
| CharacteristicImpedance@3-20Hz |
150 Ω ± 10 Ω |
| Conductor Resistance |
55.0 Ohm/km max. |
| Insulation Resistance |
1.00 GOhm x km min. |
| Mutual Capacitance@1 KHz |
30.0 nF/km nom. |
| Working Voltage |
Max: 250 V |
| Test Voltage |
1.5 KV |
| Attenuation |
9.6 |
kHz |
< |
2.5 |
dB/km |
| 38.4 |
kHz |
< |
4 |
dB/km |
| 4 |
MHz |
< |
22 |
dB/km |
| 16 |
MHz |
< |
42 |
dB/km |
Technical Data:
| Weight |
approximately 69.0 kg/km |
| Min. Bending Radius (Laying) |
15 x OD mm |
| Operating Temp.Range, min. |
-40 °C |
| Operating Temp.Range, max. |
+70 °C |
