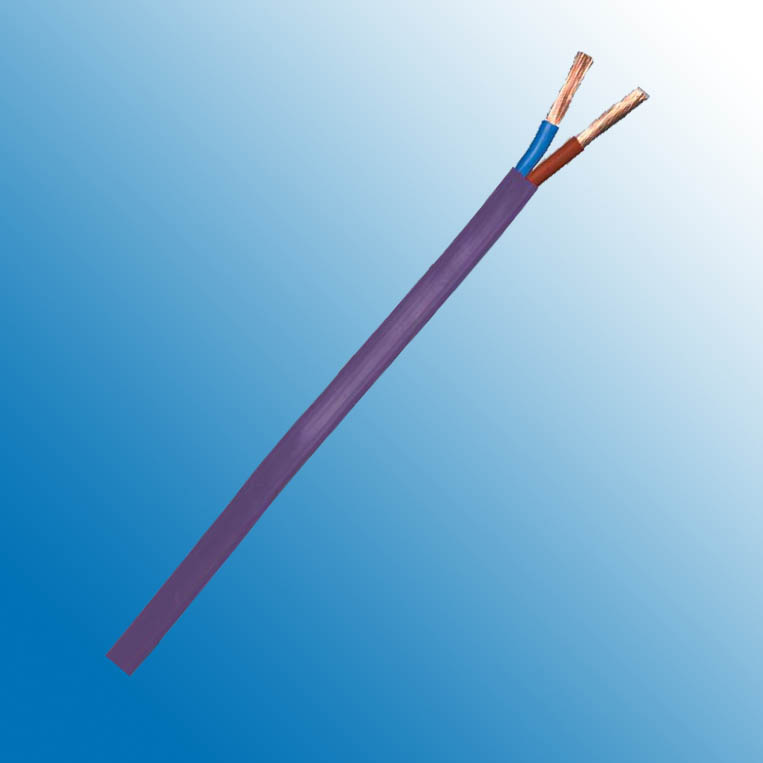

Interbus Loop Cable

Bus Cables

Application:

The two-conductor Interbus-Loop cable is to be applied as a data transmission cable as well as for the supply of sensors. The three-conductor Interbus-Loop cables is applied for supply of actuators. These cables are also suitable for Interbus-Loop 2.

Construction:

Type 2 pairs/ 3 pairs interbus Loop cable
 Inner Conductor:  Bare copper conductors 1.5mm²
 Conductor Insulation  PE
 Stranding Element Specially adjusted layering with netting tape and one additional non-woven tape over the outer layer
 Core Wrapping  -
 Shielding  -
 Drain Wire:  -
 Outer Jacket Material  PVC/ PUR/ FRNC
Conductor identification Blue, red
Sheath colour Purple

Electrical Data:

Characteristic Impedance@250MHz - 10MHz 75 Ω ± 15 Ω
Radiation Resistance 5 x 107 cJ/kg
Weather Resistance Very good
Working Voltage Max: 350V
Test Voltage 1KV

Technical Data:

Weight: approximately 78.0 kg/km approximately 94.0 kg/km
Min. Bending Radius 15 x OD mm
Operating Temp.Range, min. - 40 °C(flexing)/ - 50 °C(static)
Operating Temp.Range, max. +90 °C
