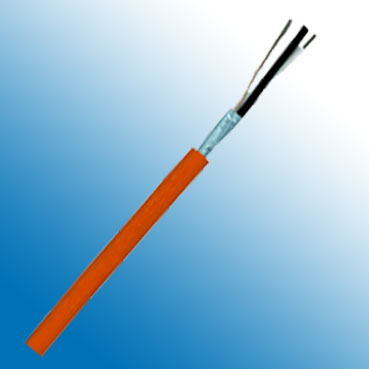

Foundation Fieldbus ISA/SP-50 Type B
Application:
FoundationTM Field bus is used in intrinsically area,especially in the field of Process Automation.A single pair 22AWG Bi-Directional digital Fieldbus cable for type B applications (31.25 KBits/sec) are available in PVC, LSHF and SWA versions. Anti-termite and anti-vermin foundation fieldbus cable is also available.
Construction:
Type | Foundation Fieldbus ISA/SP-50 Type B |
Inner Conductor | Tinned copper conductors 22AWG 0.34mm² |
Conductor Insulation | Polyolefin/Foamed PE with skin PE |
Stranding Element | - |
Shielding | Aluminium /polyester foil |
Drain Wire | (22AWG) tinned copper |
Outer Jacket Material | PVC |
Core Identification | White & Black |
Sheath Colour | Orange |
Electrical Data:
Characteristic Impedance@31.25Hz | 130 Ω±20 Ω | ||
Conductor resistance | 56.0Ohm/km @ 20°C | ||
Working Voltage | 300V | ||
Test Voltage | 1.5KV | ||
Nominal attenuation | 39 MHz | <3 dB/km |
Technical Data:
Weight: | approximately 53 kg/km/ 213 kg/km(SWA) |
Min. Bending Radius (Laying) | 15 x OD mm |
Operating Temp.Range, min. | - 25 °C |
Operating Temp.Range, max. | +80 °C |
