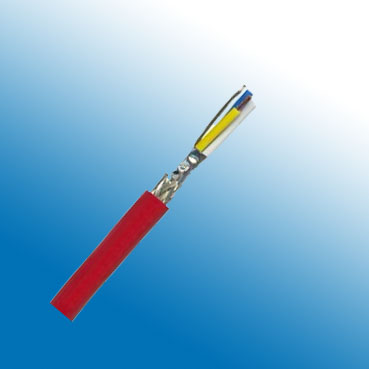

CC-Link 1.10 Cable
Application:
CC-Link® (Control & Communication Link) is a field network system that processes both control and information data at high speed, to provide efficient, integrated factory and process automation.
CC-Link is particularly popular in Asia and is used worldwide for time critical applications .
CC-Link is certified by CLPA and ensures product compatibility.
Construction:
Type |
3 x 20AWG Cable |
Inner Conductor |
Plain copper conductors 20(7)AWG |
Conductor Insulation |
Foamed PE with a hard skin |
Stranding Element |
- |
Core Wrapping |
Polyester taped |
Shielding |
Aluminium foil |
Total Shielding |
Tinned copper wire braid – 78% optical coverage |
Drain Wire |
22(19)AWG tinned copper |
Outer Jacket Material |
PVC / PE |
Core Identification |
Yellow, White, Blue |
Sheath colour |
Red |
Electrical Data:
| CharacteristicImpedance@1MHz | 110 Ω ± 10Ω | ||
| Conductor Resistance | 36.0 Ohm/km max. | ||
| Insulation Resistance | 10.0GOhm x km min. | ||
| Mutual Capacitance@1 KHz | 60.0 nF/km nom. | ||
| Working Voltage | Max:300v | ||
| Test Voltage | 2 KV | ||
| Data Rate | 156 Kbit/s | 1200m | |
| 625 Kbit/s | 600m | ||
| 2.5 Mbit/s | 200m | ||
| 5.0 Mbit/s | 110-150m | ||
| 10.0 Mbit/s | 50-100m | ||
| Attenuation | 1MHz | 1.6dB/km | |
| 5MHz | 3.5dB/km | ||
Technical Data：
| Weight: | approximately 76.0 kg/km |
| Min. Bending Radius (Laying): | 15 x OD mm |
| Operating Temp.Range, min.: | - 40 °C |
| Operating Temp.Range, max.: | +70 °C |
