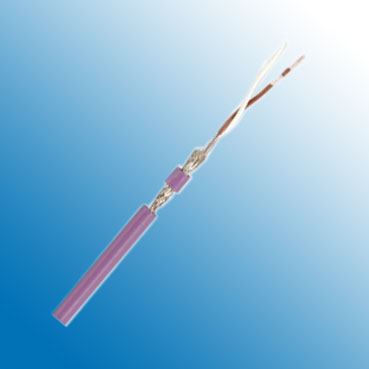

CAN Bus
Application:
CAN Bus are field bus cables that comform to international CAN standard ISO-11898, CAN Bus (Control Area Network) is a non addressable system which treats all devices as equal allowing fast transmission of data. Due to its robust nature it has been widely adopted in the automotive industry. Several versions of CAN Bus cables have been developed to meet the fast changing needs of the automation industry. The PVC jacket version is designed for stationary applications,while the Halogen free PUR version is for highly flexing application
Construction:
Type/Area of Application | Fixed Installation, Indoor | Fixed Installation, Indoor |
Cable Construction | 1x2x0.22 mm2 (stranded) | 4x1x0.22 mm2 (stranded) |
1x2x0.34 mm2 (stranded) | 4x1x0.34 mm2 (stranded) | |
1x2x0.50 mm2 (stranded) | 4x1x0.50 mm2 (stranded) | |
Inner Conductor | Copper, bare (AWG 24/7) | Copper, bare (AWG 24/7) |
Copper, bare (AWG 22/7) | Copper, bare (AWG 22/7) | |
Copper, bare (AWG 20/7) | Copper, bare (AWG 20/7) | |
Conductor Insulation | CellularPE | Cellular PE |
Conductor Colors | white, brown | white, brown, green-yellow |
Stranding Element | Double conductor | Star quad |
Shielding 1 | Polyester foil over stranded bundle | Polyester foil over stranded bundle |
Shielding 2 | - | - |
Total Shielding | Copper braid, tinned | Copper braid, tinned |
Outer Jacket Material | PVC(static) / PUR(flexing) | PVC(static) / PUR(flexing) |
Outer Diameter | 5.4 mm ± 0.2 mm | 6.9 mm ± 0.2 mm |
6.5 mm ± 0.2 mm | 8.0 mm ± 0.2 mm | |
7.0 mm ± 0.2 mm | 8.5 mm ± 0.2 mm | |
Outer Jacket Color | Violet | Violet |
Electrical Data:
Characteristic Impedance@1MHz |
120 Ω ± 10 Ω | 120 Ω ± 10 Ω |
Conductor Resistance |
186.0 Ohm/km max. | 186.0 Ohm/km max. |
Insulation Resistance |
1.00 GOhm x km min. | 1.00 GOhm x km min. |
Mutual Capacitance@800Hz |
40.0 nF/km nom. | 40.0 nF/km nom. |
Working Voltage |
250V | 250V |
Test Voltage |
1.5 kV | 1.5 kV |
Attenuation |
1 MHz | 1.3 dB/100m |
5 MHz | 3.1 dB/100m | |
10 MHz | 4.3 dB/100m | |
20 MHz | 6.4 dB/100m |
Technical Data:
Weight: | approximately 35.0 kg/km | approximately 60.0 kg/km |
approximately 54.0 kg/km | approximately 77.0 kg/km | |
approximately 69.0 kg/km | approximately 100.0 kg/km | |
Min. Bending Radius (Laying): | 15 x OD mm | 15 x OD mm |
Operating Temp.Range, min.: | - 40 °C | - 40 °C |
Operating Temp.Range, max.: | +70 °C | +70 °C |
